Rubber Plastics Sponge EVA Durometer Hardness meter
Zoom Browse
Product Name: Rubber Plastics Sponge EVA Durometer Hardness meter
Product Numbers: SD-400
Product Specifications: 100
Product Unit: With metric and imperial conversion
Product Remark: Provide Bluetooth data output(optional)
Product Class:Measuring and Testing Instruments > NDT Instruments > Shore Durometer Hardness Tester
Product Details
【DateTime:2018-02-28 Browse:】【Font: Big Mid Small】【Print】【Close

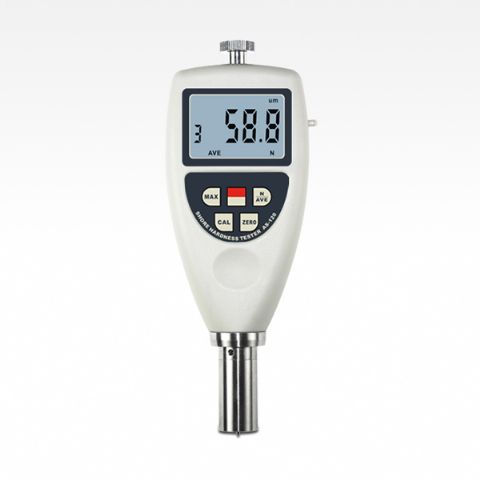

Durometer Hardness Tester for Plastics Rubber Sponge

Part No:  SD-401A
                SD-402B,  402D
                SD-403C
                SD-404E
                SD-405F
                SD-406O, 406DO, 406OO



Features:
* Integrated design, small volume, light weight, simple structure, easy to use, Intuitive readings and automatic shutdown function.
* With low battery alarm  indicator & average value  calculation function.
* Auto switch off  and  manual shutdown.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.


Model Indenter Typical Examples Of Materials Tested   Hardness  Values



A



0.79 Truncated (frustum) cone

Soft vulcanized rubber, natural rubber, nitriles,

thermoplastic elastomers, flexible polyacrylics and

thermosets, wax, felt, and leathers



20~90A

B R0.1Cone

Moderately hard rubber, thermoplastic elastomers, paper products, and fibrous materials.

Above 90 A Below 20 D
C 0.79 Truncated (frustum) cone

Medium-hard rubber, thermoplastic elastomers,

medium-hard plastics and thermoplastics.

Above 90 B Below 20 D
D R0.1Cone

Hard Rubber, thermoplastic elastomers, harder

plastics, and rigid thermoplastics.

Above 90 A
DO R1.2 Spherical radius

Moderately hard rubber, thermoplastic elastomers, and very dense textile windings.

Above 90 C Below 20 D
E R2.5 Spherical radius

Hard sponge, EVA

Above 90 DO Below 20 A



O



R1.2 Spherical radius

Soft rubber, thermoplastic elastomers, very soft

plastics and thermoplastics, medium-density

textile windings.



Below 20 DO



OO



R1.2 Spherical radius

Extremely soft rubber, thermoplastic elastomers,

sponge, extremely soft plastics and

thermoplastics, foams, low-density textile

windings.



Below 20 O



Accuracy ≤±1H
Resolution 0.1H
Range 10~90H
Case High impact  ABS
Operating temperature 0~40°C
Size 170x63x24 mm
Power Supply 2x1.5vAAA Um-4 Battery
Weight 310 g  (Not including batteries)



Product Accessories



Standard Accessories

Main Unit

Test block

Carrying Case
Operation Manual

Optional Accessories



USB data output

Bluetooth™ data output

Sponge Hardness Tester

* With metric and imperial conversion.

* Auto switch off and manual shutdown.

* With average value calculation function.

* With low battery alarm indicator & With maximum value stored.

* Use USB data output with connection PC.

* Provide Bluetooth data output choice.



Product Parameters

Accuracy ≤±1HF
Resolution
0.1HF
Range

0~100HF

Spring force 455gf
Sensor Head Diameter 25mm
Sensor Foot Diameter 80mm
Case
High impact  ABS
Operating temperature
0~40°C
Size
176x80x80 mm
Power Supply 2x1.5vAAA Um-4 Battery
Weight
310 g  (Not including batteries)



Product Accessories



Standard Accessories

 Main Unit
Carrying Case
Operation Manual

Optional Accessories



USB data output

Bluetooth data output
