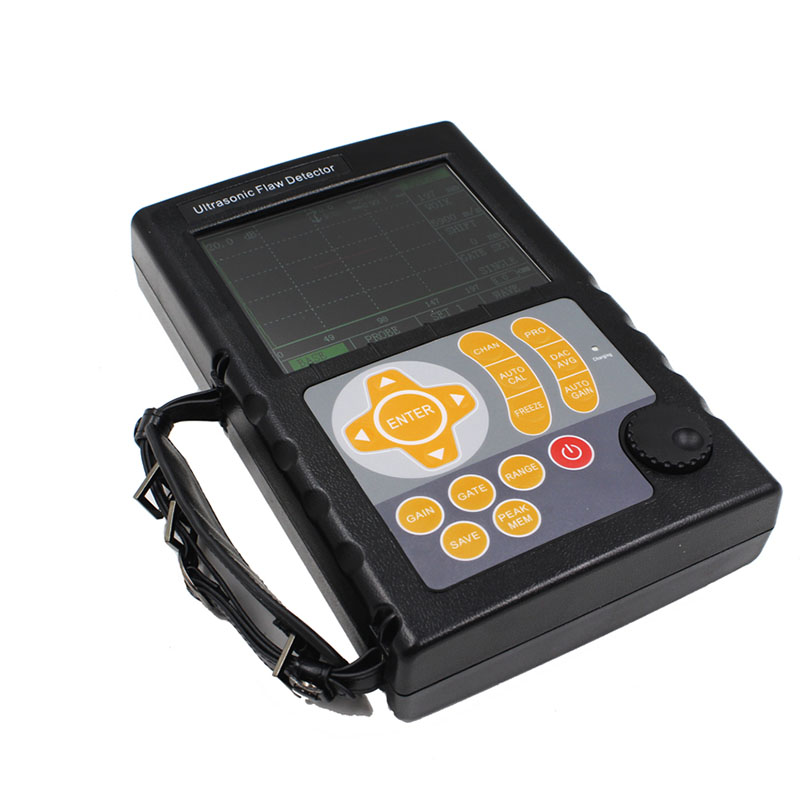

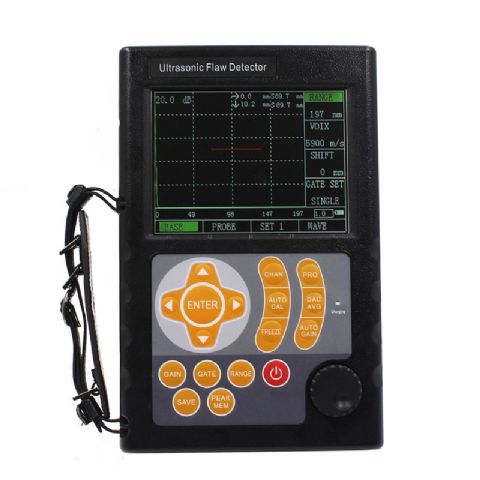

NDT Inspection Ultrasonic Flaw Detector NDT Equipment
Zoom Browse
Product Name: NDT Inspection Ultrasonic Flaw Detector NDT Equipment
Product Numbers: FD-2009
Product Specifications: 0-10000mm
Product Unit: 100 independence setup
Product Remark: eak Hold and Peak Memory
Product Class:Measuring and Testing Instruments > NDT Instruments > Ultrasonic Flaw Detectors
Product Details
【DateTime:2018-06-07 Browse:】【Font: Big Mid Small】【Print】【Close

NDT Inspection Ultrasonic Flaw Detector NDT Equipment

Main feature:
*Automated calibration of transducer Zero Offset aor Velocity;
*Automated gain, Peak Hold and Peak Memory;
*Automated display precise flaw location(Depth d、level p,distance s,amplitude,sz dB,ф);
*Automated switch (Depth d,level p,distance s);
*100 independence setup,any criterion can be input freely, we can work in the scene without test block;
*Big memory of 300 A graph.
*Gate and DAC alarm;Acoustic-Optical alarm;
*The embeded software can be online updated;
*Li battery, continue working time up to 10 hours;
*Display freeze;
*Automated echo degree;
*Angles and K-value;
*Lock and unlock function of system parameters;
*Electronic clock calendar ;
*Two gates setting and alarm indication;
*High-speed capture and very low noise;
*DAC,AVG;
*Automated calculate the size of the flaw with w ide bottom type in AVG function.
*6dB DAC functions;
*Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;
*Powerful PC software and reports can be export to excel;
Specification:

Measuring range

0-10000mm

Material Velocity

1000 m/s~15000m/s

Gain

0-130dB

Working Frequency

0.2-20MHz

Waveform memory

500

Channels

500

D-Delay

 -20µs~+3400µs

Resolution

0.1mm(2.5mm~100mm)   1mm(>100)

P-Delay

0µs~99.99µs

DAC

AVG

Built-in Standards

Vertical linear error

≤3%

Horizontal linear error

≤0.2%

Sensitivity Leavings

≥62 dB

Dynamic range

≥32dB

Recoring Time

5mins

PC Software

Temperature

-20℃~50℃

Humidity

20%~90%RH

Power

7.4V 4800mAh

Working time

>10 hours

Display

LED true color

Size

238mm*155mm*46mm

Weight

1.0kg

Standard Pakcage

Ultrasonic flaw detecotr 1
1.5A/9V power adaptor  1
Probe connecting cable  1
Instrument case  1
Instruction manual  1
Straight probe 10mm 2.5MH     1
Angle probe 13x13 K2 2.5MHz   1
Warranty card 1


Optional Accessories:

All kinds of straight beam probe
All kinds of angle probe
Calibration block
Cable
