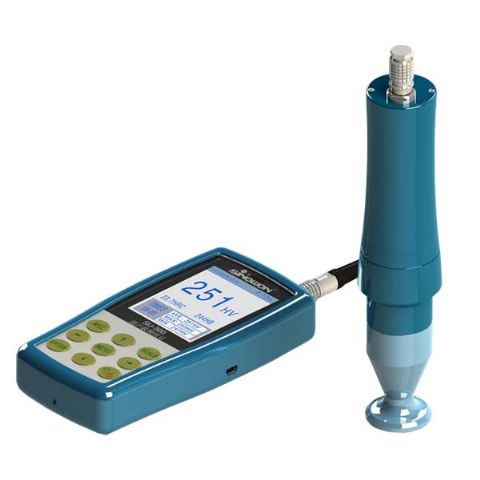

UCI Portable Ultrasonic Hardness Tester
Zoom Browse
Product Name: UCI Portable Ultrasonic Hardness Tester
Product Numbers: ULHT-3003M
Product Specifications: Accuracy: ±3% HV, ±1.5HR, ±3%HB
Product Unit: Manual Probe: 10N,20N,49N,98N ;Motorized Probe: 3N,5N,8N,10N
Product Remark: Vickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB)
Product Class:Measuring and Testing Instruments > NDT Instruments > Ultrasonic Hardness Tester
Product Details
【DateTime:2016-10-21 Browse:】【Font: Big Mid Small】【Print】【Close

UCI Portable Ultrasonic Hardness Tester

<

Features:

- High Accuracy——±3% HV, ±1.5HR, ±3%HB
Microscopic Indentation—— Only high-power microscope can observe the indentation
Quick Response——Result in 2 seconds
Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.
- Easy to
Operate——Operate well after short training

- Warranty——2-Year warranty for main unit (Excludes Probe)
Mass Storage——Save 1000 groups measurement data
Simple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency.
- Metal Shell and glass panel
Rechargeable lithium battery
- With Data output
Micro indentation, no destructive for specimen
More suitable for thin pieces, coating layer hardness

Specification:

Product Name Ultrasonic Hardness Tester
Model ULHT-3003M
Optional probe  Manual Probe: 10N,20N,49N,98N ;Motorized Probe: 3N,5N,8N,10N
Measuring Range(ASTM) HBS:100-500; HV:100-1500; HRC:20-68; HRB:55-100; HRA:37-85; Mpa: 255-2180N/mm
Measuring Accuracy  Scales  ﹤250HV 250~500HV 500~800Hv ﹥800HV
HV0.1 6 7 8 9
HV0.3 6 7 8 9
HV0.8 5 5 6 7
HV1 5 5 6 7
HV5 5 5 6 5
HV10 5 5 5 5
Hardness Scales  Vickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB)
LCD  Color Screen
Data Display  LCD Backlight, Adjustable
Language  Chinese, English, German, Portugese, Turkish
Data Output  RS232 Hyper Terminal/Bluetooth  Printer
print Bluetooth
Data Storage  To save 1000-groups of measuring data and 20-groups of calibration data
Word input         Letters and numerals
Working Environment       Temperature: -10°C to 50°C ;    Humidity :30%-80% R.H.
Battery Voltage      Rechargeable lithium battery  ; Voltage :4.2V, 4800mAh
Recharger Voltage  AC220V/50Hz, 110V/60Hz
Main unit Dimension and Weight Main unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
Packing Dimension and Weight Packing Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight (Standard Delivery)4.3Kg



Packing List:
- Tester
- Standard Rockwell Block
- USB Recharger
- Qualification Certificate
- Warranty Card
10N Motorized Probe
- Probe Cable
- COM Cable
Anti Vibration Case
Operation Manual
- Screw
Optional Accessories:
-Motorized Probe  3N,  5N , 8N
