Why Rok UCI ultrasonic tester?
- High accuracy than other type, with ±3% HV, ±1.5HR, ±3%HB error.
- Microscopic Indentation: Only high-power microscope can observe the indentation
- LCD display , Result, times count, max/min, average and deviation.
- Easy to operate
- Large storage capacity -1000groups
- Simple Calibration Save 20 Groups calibration data for invoking.
Specifications:
| Product Name |

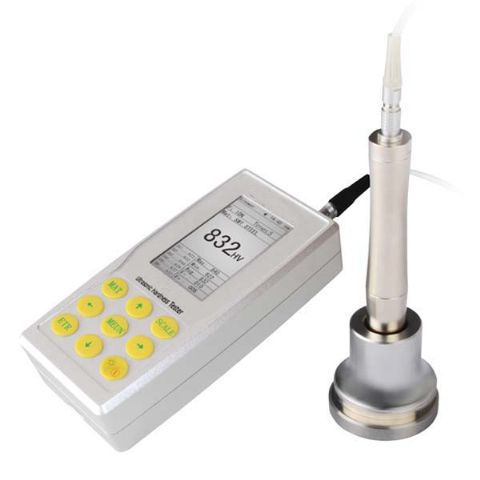

Ultrasonic Hardness Tester |
| Model |
ULHT-3001 |
| Optional probe |
2Kgf(Optional 1Kgf,5Kgf,10Kgf) |
| Measuring Range |
HV:50～999; HRC:20～70; HB:85～650 |
| Accuracy |
HV:±3%HV; HRC:±1.5HRC; HB:±3%HB; HLD:±3%HLD |
| Measuring Direction |
Support 360° |
| Data Storage |
To save 1000-groups of measuring data and 20-groups of calibration data |
| Hardness Scale |
HV,HB,HRC |
| Data display |
Loading force, Testing-times, Testing result, Average, Maximum,Minimum,Deviation and Conversion scale |
| Hardness Indication |
LCD display |
| Operating Environment |
Temperature:-10℃~50℃; Humidity: 30%~80%R.H |
| Operating Voltage |
6V |
| Recharger Voltage |
AC220V/50Hz, 110V/60Hz |
| Instrument Dimensions |
160x80x31mm |
| Net Weight |
Approximate 500g(Without probe) |
Packing List:
-Instrument Main Body
-Probe Silicone Cap
-Qualification Certificate
-2Kgf Manual Probe
-Probe Cable
-Packing List
-Carrying Case
-USB Recharger
-Operation Manual
Optional Accessories:
-1Kgf Manual Probe
-5Kgf Manual Probe
-Hardness Block (300-500)
-10Kgf Manual Probe
-0.1Kg Motorized Probe
-0.5Kg Motorized Probe
-0.8Kg Motorized Probe
-Hardness Block (300-500)
-Hardness Block (28-35)HRC
-Hardness Block (38-43)HRC
-Hardness Block (48-53)HRC
-Big Cylinder Support Ring
-Small Cylinder Support Ring
-Mini-Printer
-Deep Hole Probe Cap
-Testing Stand
-Measuring Software
-Handy Silicone Shell
