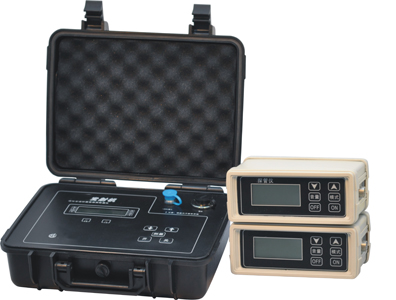

Light Weight Underground Pipe Coating Leak Detector
Part No: UPLD-1006
Original: China
Descriptions:
This detector is is a whole new generation of digital, intelligent, versatile buried pipeline leak detection coating device. This instrument does not need to dig up the ground soil situation, can accurately detect pipeline buried in the underground location, direction, depth of pipe, coating damage location and damage size.The instrument is currently one of the advanced equipment to detect buried pipe coating, pipe corrosion and corrosion of the pipe body positioning points.this is the oil, chemical, oil, gas, electricity, water, heating department to ensure the safe operation of the pipeline, improve economic efficiency, early discovery pipeline corrosion points, Spill prevention of corrosion necessary testing equipment.
Features:
-Easy to operate, simple to use, easy to learn.
-With a variety of detection methods, and can automatically convert， when the power is turned off , the data is automatically saved
- Using the flat design, keyboard operation, multi-function keys
- Using a voltage-controlled oscillator frequency technology, the signal strength of the pipe location and leak point response clearer
- Small size, light weight, easy to carry, is more suitable for outdoor use
- No need additional any wiring,press the measure button, you can automatically measure the transmitted power, emission voltage, emission current, grounding resistance and other parameters
- Using the flat design, keyboard operation, multi-function keys.
- No need additional any wiring,press the measure button, you can automatically measure the transmitted power, emission voltage, emission current, grounding resistance and other parameters
- The whole of the signal strength detection, performed by internal normalization processing apparatus, so that the measured size of the coating and insulation leakage resistance value having a contrast.
- Using a voltage-controlled oscillator frequency technology, the signal strength of the pipe location and leak point response clearer.
- Audio, showing the value, analog long strip cursor display signal strength.
- Small size, light weight, easy to carry, is more suitable for outdoor use.
- When the instrument undervoltage auto-shutdown, the internal power supply automatically cut off.
Specification:
1.Treansmitter:
Transmit power 0-25W
Output 5-500Ω,Automatic matching
Transmission range: 0.03-5Km, can gradually move to the 5Km
Power Supply: 12V (military lithium batteries)
Working temperature: -10 Degree - +60 Degree
Control system DSP+ vector control, support system upgrade
Regulation system: Digital keyboard control
Weght: 3.0Kg (including battery)
2. Probe Device:
Sensitivity: -65db
Deviation: 5cm
probing depth: ≤ 6M
Distance accuracy: Less than 0.1% testing distance
Power supply: 9.6V Ni MH battery
Size: 165 mm*110 mm*68mm
Weight: 0.9Kg (including battery)
3. Detector
The leak detection accuracy: Less than 0.5mm2
Deviation: Less than 5cm
Power supply: 9.6V Ni MH battery
Size: 165 mm* 110 mm * 68mm
Weight: 0.9Kg (including battery)
Package:
The main pieces of equipment:
Transmitter 1; probe device 1; leak detector 1;
Accessories:
(1) Probe rod 1
(2) detection wire 1
(3) output wire 1
(4) ground wire 1
(5) ground rod 2
(6) small rasp 1
(7) a magnet 1
(8) 12.6V charger 1
(9) 9.6V charger 2
(10) Fuse 1A 2 2
(11) a set of random file 1
