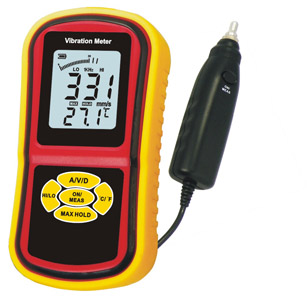

Portable Digital Vibration Meter
Zoom Browse
Product Name: Portable Digital Vibration Meter
Product Numbers: VIME-2002
Product Specifications: Velocity: 10Hz~1KHz (LO)
Product Unit: Displacement: 10Hz~1KHz (LO)
Product Remark: Operation temperature: 0~40℃
Product Class:Measuring and Testing Instruments > NDT Instruments > Vibration Meter
Product Details
【DateTime:2012-07-30 Browse:】【Font: Big Mid Small】【Print】【Close
Portable Digital Vibration Meter:

*Packing method: Gift box + PP box

*Power supply: 1*9V battery

*Weight: 200g

*Dimension: 70*145*28MM

Measuring range

Acceleration:0.1~199.9m/s

Velocity:0.1~1999.9m/s

Displacement:0.001~1.999 mm (P﹣P)

*Accuracy: ±5%

*Measuring frequency:

--Acceleration: 10Hz~1KHz (LO);1KHz~15KHz (HI)

--Velocity: 10Hz~1KHz (LO)

--Displacement: 10Hz~1KHz (LO)

*LCD display: 3 1/2 digits display

*Vibration pickup: Piezoelectric ceramic accelerometer (Shear-type)

*Operation temperature: 0~40

*Equipped two probes (S and L) to adapt the different measurement requirement

*Provides a magnetic probe to fit the condition uneasy hold on by hand

*Maximum value hold function

*Ambient temperature reading

*C/F selection

*Low battery indication

*Auto power off

*LCD backlight display

Warranty: 12months
