3 Piezoelectric Transducers Vibration Meter Tester
Zoom Browse
Product Name: 3 Piezoelectric Transducers Vibration Meter Tester
Product Numbers: VIME-6380-3
Product Unit: 3 Piezoelectric Transducers
Product Remark: Acceleration: 10Hz~10kHz
Product Class:Measuring and Testing Instruments > NDT Instruments > Vibration Meter
Product Details
【DateTime:2018-03-17 Browse:】【Font: Big Mid Small】【Print】【Close

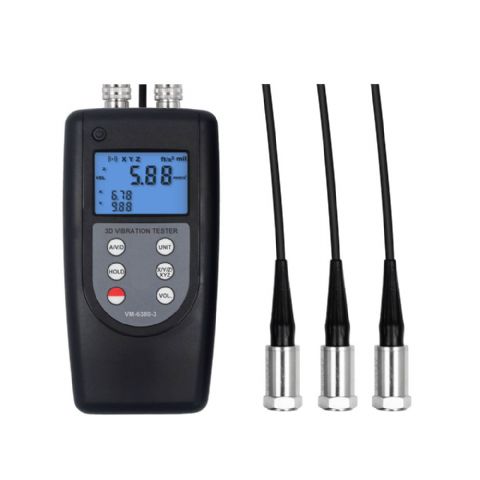

3D Vibration Meter 3 Piezoelectric Transducers

        Used for measuring periodic motion,to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration.
So as to provide the data for the quality control, run time and equipment upkeep.

Specification
Sensor: 3 Piezoelectric Transducer
Measuring Range:
Acceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak
Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS
Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range:
Acceleration: 10Hz~10kHz
Velocity: 10Hz~1kHz
Displacement: 10Hz~1kHz
Accuracy: 5% of Reading+2 digits
Operating Conditions: Temperature 0~50ºC Humidity <90%RH
Power Supply: 4x1.5V AA(UM-4)Battery
Dimensions: 140x73x35mm
Weight: 415g(without Batteries)
Standard Pakcage: Main Unit/Piezoelectric Transducer/Powerful Rare Earth Magnet
Probe(Cone)&Probe(Spherical)/Carrying Case(B04)/Manual Book
Optional Accessories: Headset/RS-232C Data Cable with Software/Bluetooth Data Adapter with Software
