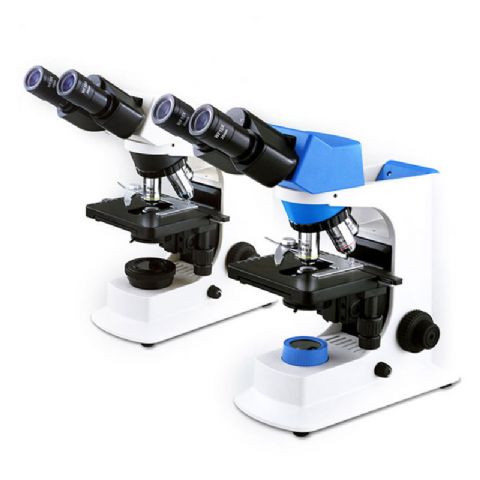

Aspheric Illumination Biological Microscope Inclined 30
Features:
● Excellent OTICS infinity optical system, outstanding resolution and definition.
● Original integrated stand for excellent stability.
● Unique aspheric illumination system, provide bright and comfortable lighting.
● Various colorful matching looking can provide lively environment and happy mood.
● Various accessories for upgrading.
● Back handle and observing hole convenient for carry and operation.
● Alternative color for main body.
Biological Microscope Specification:
|
Items
|
Specification
|
BIMI-21524
|
BIMI-21525
|
BIMI-21526
|
BIMI-21527
|
|
Eyepiece
|
WF 10X-18mm
|
●●
|
|
|
|
|
WF 10X- 20mm
|
|
●●
|
●●
|
●●
|
|
Finity Achromatic
Objective
|
4X
|
●
|
|
|
|
|
10X
|
●
|
|
|
|
|
40X(S)
|
●
|
|
|
|
|
100X/1.25 (Oil) (S)
|
●
|
|
|
|
|
Finity Plan
Objective
|
4X
|
|
●
|
|
|
|
10X
|
|
●
|
|
|
|
40X/0.65 (S)
|
|
●
|
|
|
|
100X/1.25 (Oil) (S)
|
|
●
|
|
|
|
Infinity E-Plan
Objectives
|
4X
|
|
|
●
|
|
|
10X
|
|
|
●
|
|
|
40X (S)
|
|
|
●
|
|
|
100X (Oil) (S)
|
|
|
●
|
|
|
Infinity Plan
Objectives
|
4X
|
|
|
|
●
|
|
10X
|
|
|
|
●
|
|
40X (S)
|
|
|
|
●
|
|
100X (Oil) (S)
|
|
|
|
●
|
|
Plan 20X
|
|
|
○
|
○
|
|
Plan 60X (S)
|
|
|
○
|
○
|
|
Seidentopf Binocular Head
|
Inclined 30°,Rotatable 360°,
Interpupilary Distance 48-75mm
|
●
|
●
|
●
|
●
|
|
Seidentopf
Trinocular Head
|
Inclined 30°,Rotatable 360°,
Interpupilary Distance 48-75mm,
Light Distribution 20:80
|
○
|
○
|
○
|
○
|
|
3.2/ 5 MP Pixel Digital Head
1/2’’CMOS color sequential scanning. SB2.0
Light Distribution: 20:80
|
○
|
○
|
○
|
○
|
|
Nosepiece
|
Quadplex , Quintuple (Optional)
|
●
|
●
|
●
|
●
|
|
Mechanical Stage
|
Stage Size: 145 mm×140mm
Travel: 76mmX52mm, Scale: 0.1mm
Coaxial Coarse and Fine Focusing Knobs
Travel Range: 26mm, Scale: 2um
Two Slide Holder
|
●
|
●
|
●
|
●
|
|
Rackless(Integrated) stage,
size: 140×135mm,Travel range: 75×35mm,
Two-slide holder
|
○
|
○
|
○
|
○
|
|
Condenser
|
Abbe N.A. 1.25(Iris Diaphragm)
|
●
|
●
|
●
|
●
|
|
Illumination
|
3W-LED Illumination Systems
|
●
|
●
|
●
|
●
|
|
12V/20W Halogen Lamp
|
○
|
○
|
○
|
○
|
|
6V/30W Halogen Lamp
|
○
|
○
|
○
|
○
|
|
Field Diaphragm
|
|
○
|
○
|
○
|
○
|
|
Dark Field Condenser
|
Dry, apply to 4X - 40X objective
|
○
|
○
|
○
|
○
|
|
Polarizing Attachment
|
Analyzer/Polarizer
|
○
|
○
|
○
|
○
|
|
Independent
phase contrast unit
|
10X /20X /40X /100X
|
|
|
○
|
○
|
|
Fluorescence
Attachment
|
Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.
|
|
|
○
|
○
|
|
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp.
|
|
|
○
|
○
|
|
Filter
|
Blue /Green /Yellow
|
○
|
○
|
○
|
○
|
|
C-Mount
|
1X/ 0.5X/0.75X （Focus adjustable）
|
○
|
○
|
○
|
○
|
|
Mirror
|
|
○
|
○
|
○
|
○
|
|
Wire winding device
|
|
○
|
○
|
○
|
○
|
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 390mm×280mm×450mm Gross Weight: 7.5 kgs Net Weight: 6.5 kgs
