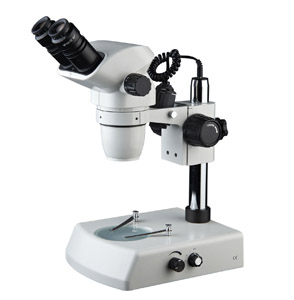

6.7X-45X Binocular Stereo Microscope With Light
Features:
---Supply high quality optic system,
---Durable and reliable operating mechanism.
---Long working distance ,
---Large visual field and clear image
Specification:
Magnification:6.7x-45x
zoom ratio:6.7:1
Eyepiece magnifacation:10X/22mm
Weight:3750g
---1 Name:binocular zoom stereo microscope
---2 Model:STMI-4502
---3 View head 45 degree inclined
---4 Zoom ratio:1:6.7
---5 Eyepiece:WF10x/22mm
---6 Objective:0.67x-4.5x
---7 Magnification:6.7x-45x
---8 Pupillary adjust distance:55-75mm
---9 Working distance:105mm
---10Accessories:binocular /trinocular can be option
Technical data
| magnification |
standard spec:6.7x-45x,optional eyepiece or auxiliary objective can make magnification to 3.35x-180x |
| objective |
standard spec:0.67x-4.5x zoom objective,zoom ratio:6.7:1,ensure image surface parfocality |
| viewing head |
45°,60°inclined,360°rotate,interpupillary distance:54-76mm,diopter adjusting range±5 |
| articulated binocular or trinocular head,50%/50% spectral |
| adjustable eyepiece |
standard spec.10X/22mm,large sight,wild field,high point |
| optional eyepiece |
10X/22mm,15X/16mm,20X/12mm,25X/9mm(objecmicrometer is available) |
| working distance |
standard:105mm,auxiliary objective can make it to 26mm-177mm |
| auxiliary objective |
0.5X/177mm, 1.5X/47mm, 2X/26mm, for option |
| focus arm |
adjustable,lift range:50mm |
| up illumination |
12V/15W halogen reflected illumination |
independent switches and light source,brightness can be continuously adjusted independently fluorescent transmitted illumination,brightness fixed LED lighting more even,the brightness more stable low voltage security,low consumption,low calorific value,long service life |
| super bright LED reflected illumination |
| down illumination |
12V/15W halogen transmitted illumination |
| super bright LED transmitted illumination |
| videotape interface |
with special interface,connect to usual camera,digital camera,imitate CCD,digital CCD,VGA |
Optical data
| objective |
0.5X |
1X |
1.5X |
2.0X |
| working distance(mm) |
177mm |
105mm |
47mm |
26mm |
| 10X |
total magnification |
3.4X-22.5X |
6.7X-45.0X |
10.1X-67.5X |
13.4X-90.0X |
| view field(mm) |
65.7-9.8 |
32.8-49 |
21.9-3.3 |
16.4-2.4 |
| 15X |
total magnification |
5.0X-33.8X |
10.1X-67.5X |
15.1X-101.3X |
20.1X-135X |
| view field(mm) |
47.8-7.1 |
23.9-3.6 |
15.9-2.4 |
11.9-1.8 |
| 20X |
total magnification |
6.7X-45.0X |
13.4X-90.0X |
20.1X-135.0X |
26.8X-180X |
| view field(mm) |
35.8-5.3 |
17.9-2.7 |
11.9-1.8 |
9-1.3 |
| 25X |
total magnification |
8.4X-56.3X |
16.8X-112.5X |
25.1X-168.8X |
33.5X-225X |
| view field(mm) |
26.9-4.0 |
13.4-2.0 |
9.0-1.3 |
6.7-1.0 |
