Economical Gloss Meters from China For Dope, Stone, Enamel
Zoom Browse

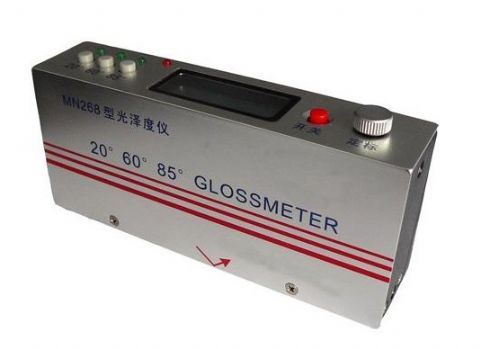

Product Name: Economical Gloss Meters from China For Dope, Stone, Enamel
Product Numbers: GLME-1268
Product Specifications: 20° 60° 85° Gloss Meters
Product Remark: Dope, paint, paper,metal, stone
Product Class:Measuring and Testing Instruments > Optical Instruments > Gloss Meters
Product Details
【DateTime:2011-03-30 Browse:】【Font: Big Mid Small】【Print】【Close

Economical Gloss Meters from China For Dope, Stone, Enamel

1.Small and light,  easy to be carried and used.
2. 1*1.5V alkaline battery can be used for 60 hours and 10000 readngs.
3. Moisture resistant gloss meter
4. Start and measure.
5. Long term stable lighe source
6. Black Quartz crystal standard board, no excursion.
7.Gloss meter for measure dope, paint, paper,metal,stone,enamel
Model
GLME-1268
GLME-1260
GLME-1275
GLME-1245
GLME-1260C
GLME-1260D
GLME-1260L
Geometry
20°60°85°
60°
75°
45°
60°
60°
60°
Measurement
0-199.9
0~199.9
0-199
0-1999
< td>
Power Supply
1.5V AA
Measuring Spot
10×10(20°)
10×20
8×20
10×14
2×2
10×20
25×50

10×20(60°)

8×30(85°)
Window Size

11×52
14×28
12×48
14×20
Φ4
14×28
26×52
Dimensions
L×W×H(mm)

143×32×64
114×32×64
Weight(g)
390
285
Applications
Paint、Coating、Printing
Paper
Plastic、
Ceramics
Curve Object
and small size
Object
Metal、Dope、
Plating layer
Marble、
Granitic
International Standards
ISO2813
ASTMD523
DIN-67530

TAPPI
-T804

ASTM-C346
ISO2813
ISO2813
ASTM
ASTM-2767
ASTMD523
ASTMD523
D523,


ISO7668

ISO 2813
GB Standards
GB9754(Paint
Coating)
GB7706 (Printing)
GB8941
GB11420
(porcelain
enamel)
Gb8807
(Plastic)
GB3295
(Ceramics)
GB9754
GB9754
GB9966.5
(Marble)


Package list
1 Gloss meter
2 Standard board box
3 Plastic package
4 User manual
5 Certificate of quality
6 Lens cloth
7 Paper Box
