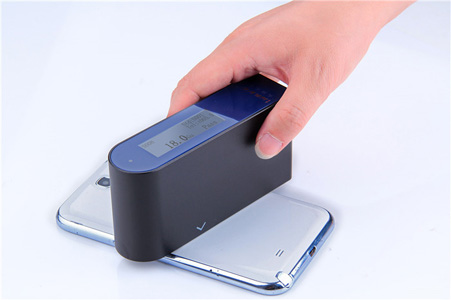

Precision Gloss Meter with 60 Degree Projection Angle
Part No: GLME-5060
The gloss meter is designed and manufactured with the reference to the international standard ISO 2813 and China national standard GB/T9754. Technical parameters are in accordance with ASTM D2457, ASTM D523 and GB/T13891, GB/T7706, GB/T8807 standard, Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material.
Features:
|
Measurement Range
|
0-200Gu
|
|
|
|
|
|
|
Application
|
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material.
|
|
| |
| |
| |
|
Instrument Dimensions
|
122x34x60mm
|
|
|
|
|
|
|
Projection Angle
|
60 degree
|
|
|
|
|
|
|
Measuring Spot
|
（ellipse: long axis*minor axis）8mm*4mm
|
|
|
|
|
Measuring Mode
|
Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode
|
|
|
Data Storage
|
100 groups
|
|
|
|
|
|
|
|
Set standard sample in any stored data, user-define the tolerance range
|
|
|
Language
|
Chinese/English
|
|
|
|
|
|
|
Output
|
Connect the micro printer to realize real-time output of measured data
|
|
|
Division Value
|
0.1Gu
|
|
|
|
|
|
|
Repeatability
|
0.2Gu
|
|
|
|
|
|
|
Reproducibility
|
0.4Gu
|
|
|
|
|
|
|
Indication Error
|
1.0Gu
|
|
|
|
|
|
|
International Standard 60°
|
ISO－2813, ASTM－C584, ASTM－D523, DIN－67530, ASTM－D2457,JND-A60,JND-P60
|
|
|
National Standard 60°
|
GB 9754,GB 9966,GB 8807
|
|
|
|
Standard Accessories
|

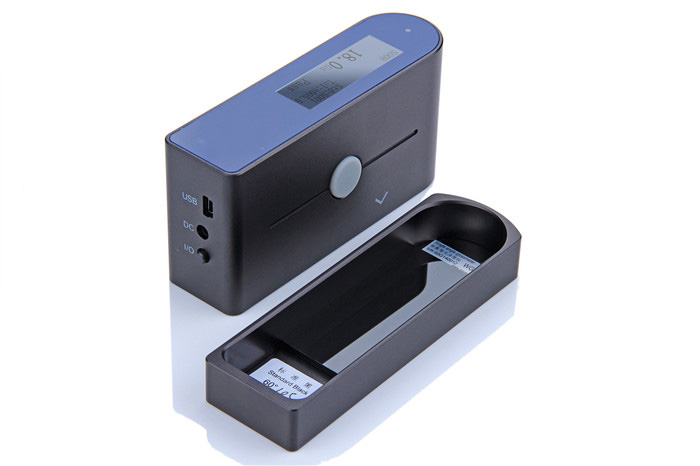

Power adapter/user manual/warranty certification/standard board
|
|
|
Optional Accessories
|
Micro-printer
|
|
|
