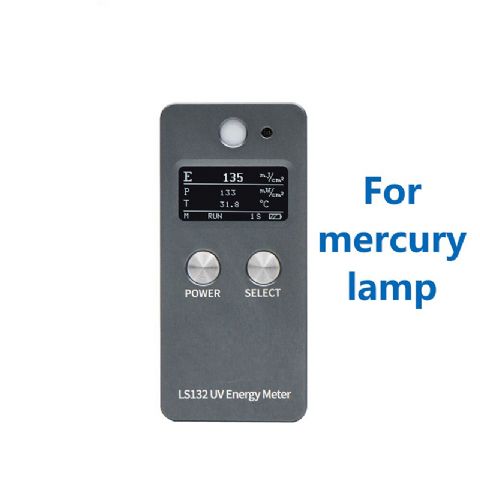

UV Energy Meter Mercury Lamp Halogen Lamp Ultraviolet Radiation Intensity Tester
UV energy meter is a professional ultraviolet measurement tool for detecting UV energy and UV intensity in high-pressure mercury lamps, halogen lamps and other light sources. The LS132 UV power puck can be used to test the UV light intensity, UV energy and temperature of UV light sources in various curing machines, UV coating machines, dryers, exposure machines, printing machines and other equipment. This UV power puck adopts ultra-small size design, no need to worry about being restricted by the space of the use occasion. You can watch the video below, LS132 UV integrator test the UV light intensity and energy of high pressure mercury lamp.
Features：
1. With a thickness of only 7.6mm and a width of 44mm, the tester can measure and place to hard-to-reach area.
2. The sampling speed of 2048 times per second provides accurate data for the UV energy meter, suitable for ISO and standard large company
3. The real-time power value can be dynamically displayed during measurement and the accumulated UV energy value and the maximum power value can be automatically counted after the measurement is completed.
4. The built-in high-precision and high-sensitivity temperature detector and timer can dynamically display the actual temperature in the UV curing machine and other equipment and. The built-in timer can also accurately record the measurement time.
5. With high temperature resistant design, the UV radiometer can work normally for a long time in an environment of 100℃.
6. Last data auto memery function
7. When the UV integrator is off, long press the “POWER” button to enter the setting interface to set the measurement mode, trigger power value and smooth processing parameters. The parameter setting steps are shown in the following figure:
8. Manual measurement mode is suitable for most measurement occasions, while automatic measurement mode is suitable for occasions where the instrument needs to run for a long time with the conveyor belt to receive ultraviolet rays.
9. Low cost and cheap.
