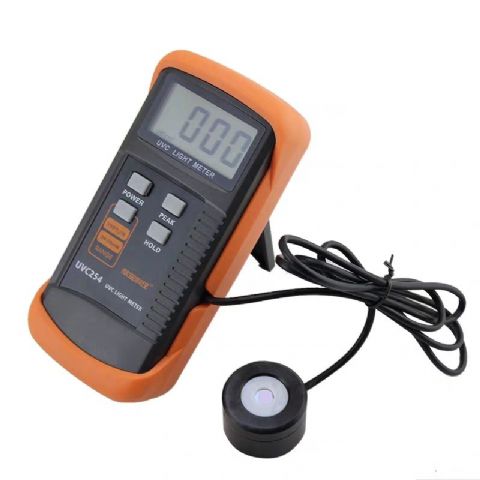

UVC254 UVC Light Meter UV Radiation Intensity 248nm-262nm
Zoom Browse
Product Name: UVC254 UVC Light Meter UV Radiation Intensity 248nm-262nm
Product Numbers: UVC254
Product Specifications: Wavelength range: 248nm -262nm
Product Unit: Professional, high-quality UV meter
Product Remark: Resolution: 1uW / cm2
Product Class:Measuring and Testing Instruments > Optical Instruments > Lux Meter Light Meter
Product Details
【DateTime:2021-03-13 Browse:】【Font: Big Mid Small】【Print】【Close

UVC Light Meter Photometer Foot Candle Meter

      &nbnbsp; The UVC band of ultraviolet rays, with a wavelength of 200 to 275 nm, is also called short-wave sterilized ultraviolet rays. The ultraviolet bactericidal lamp emits UVC short-wave ultraviolet.
         The penetration ability of UVC short-wave ultraviolet is the weakest and cannot penetrate most transparent glass and plastics. The short-wave ultraviolet rays contained in sunlight are almost completely absorbed by the ozone layer.

Features:

Measure and test short wave UV light Narrow-band spectrum248nm~262nm, 254nm peak wavelength

Portable and mini structure.

UV probe comprises of visible light insulation diaphragm, narrow-band optical filter and gallium arsenide sensor

Wider Range: 1uW/cm2~39.99mW/cm2

Alu Shell strong engouth

High quality Chips for stability

Specification:

Wavelength coverage: 248nm~262nm
Peak wavelength: 254nm
Irradiance measuring span: 3999uW/cm2, 39.99mW/cm2
Resolution ratio: 1uW/cm2
Parasitic light beyond ultraviolent band: Less than 0.1%
Accuracy: ±5%+2 words
Sampling rate: 2.5 times per second
Operating environment: Temperature (0~40)℃;
Humidity Less than80%RH
Overload display: “OL”
Weight: 350 g (Battery, probe included)
Power supply: DC 9V (6F22 type) battery
Operating current: about 2.7mA
Dimension: body 160x78x43mm
Sensorφ   40x35mm
