UVC 254 Light Meter Ultraviolet Light Meter UV Intensity Meter
as a professional UV Light Meter manufaturer,which provide a series of instruments used to test the UV radiation intensity,including UV Intensity Meter for bactericidal lamp, multi probe UV Light Meter and digital online UV radiometer. It can provide you the instruments used to test UVA,UVB and UVC intensity and can comply with the technical standard for disinfection of medical institutions and international standards.
Brief Introduction
LS125 can support 9 kinds of UV probes according to different ultraviolet spectrum, measuring range, test hole diameter and application industry.
2. LS125 Parameters
|
Parameters
|
LS125 UV Light Meter
|
|
Instrument weight
|
About 194g
|
|
Instrument size
|
148mm × 76mm × 26mm (L*W*H)
|
|
Display
|
240*160 dot matrix LCD
|
|
Power supply
|
4 AAA alkaline batteries (not included)
|
|
Probe connection
|
Push pull (Snap-in style),Aviation socket
|
3.Features
1. Replaceable probe design, support 9 UV probes.
2. Advanced digital probe technology, it has high precision and good anti - jamming ability.
3. Instrument intelligent recognize probe type and adjust the display interface intelligently.
4. A variety of spectral range, measuring range, test hole size of the probe to adapt to different application industries.
5. For LED point light source, 1mm test hole can make it more convenient to measure.
6. Statistical functions, real-time value, maximum value, minimum value, average value, time, energy values are displayed at the same time

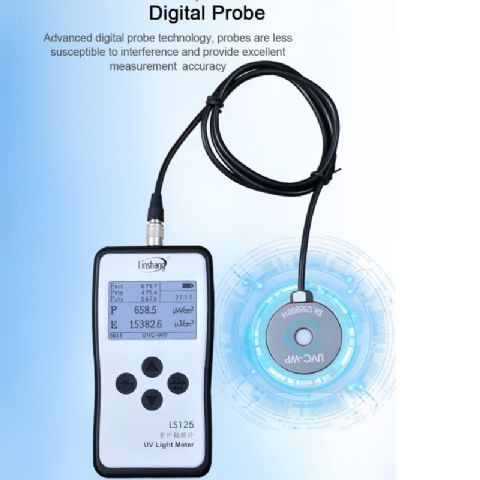

UVC-WP is one of the 9 probes for LS125 UV light meter, especially for the water treatment of high-power germicidal lamps, the response wavelength of the probe is 230nm-280nm, with waterproof function, and it can detect the intensity and energy of the germicidal lamp.
UVC-WP Probe Parameters
|
Parameters
|
UVC Probe
|
|
Spectral response
|
230nm-280nm, = 254nm
|
|
Power measuring range
|
0 - 200000μW/cm2
|
|
Resolution
|
0.1μW/cm2
|
|
Energy measuring range
|
0-9999999μJ/cm2
|
|
Record time
|
0-99999s
|
|
Measuring accuracy
|
±10%
|
|
Sampling speed
|
6 times/second
|
|
Optional unit
|
μW/cm2 (default), mW/cm2, W/m2
|
|
Test Hole Diameter
|
=10mm
|
|
Probe size
|
Diameter 50mm × thickness 20mm
|
|
Waterproof depth
|
1m
|
UVC-WP Probe Features
1. Advanced digital probe technology, it has high precision and good anti - jamming ability.
2. Power measuring range: 0 - 200000μW/cm2
3. Unit: μW/cm2 (default)
4. A variety of spectral range, measuring range, test hole size of the probe to adapt to different application industries.
5. Statistical functions, real-time value, maximum value, minimum value, average value, time, energy values are displayed at the same time
6.Waterproof depth: 1m
