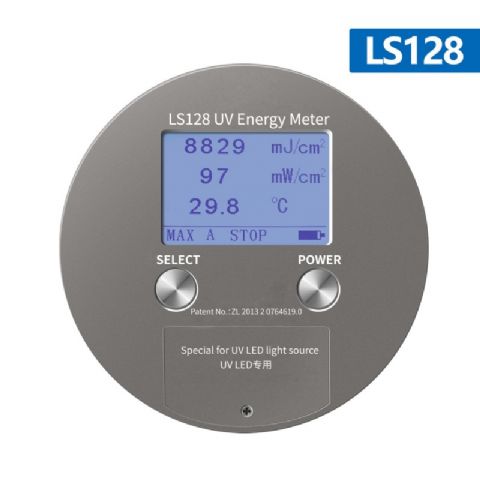

UV Energy Meter UVA Radiometer 340nm-420nm
Zoom Browse
Product Name: UV Energy Meter UVA Radiometer 340nm-420nm
Product Numbers: LS128-LS131
Product Specifications: Energy measuring range: 0 - 999999mJ/cm²
Product Unit: Sampling speed: 2048 times/second
Product Remark: Recording period: 32 min
Product Class:Measuring and Testing Instruments > Optical Instruments > Lux Meter Light Meter
Product Details
【DateTime:2021-03-14 Browse:】【Font: Big Mid Small】【Print】【Close

UV Energy Meter UVA Radiometer 340nm-420nm


Specification:
1.With wide spectral response range, the UV power puck can test UV LED light source with any peak in the range of 365nm-405nm.
2. Real intelligent UV energy meter, the maximum value, real-time value, temperature curve and power curve can be switched.
3. Ultra-wide measurement range design, the UV power puck can measure up to 40,000 mW / cm² (40W / cm²) and can test high power UV light source
4. The high-precision and fast-response temperature detector is used to truly measure the actual temperature in the curing machine.
5. High temperature resistant design with built-in heat insulation sheet, it can run in the environment of 100 degrees Celsius for a long time
6. Built-in large-capacity memory.
7. Built-in timer can accurately record the UV curing time.
8. The stored data will not be lost when the power is turned off. The last test data will be displayed automatically when the power is turned on. You need to manually delete the test data.

Specification:


Application
Light intensity, energy and temperature
measurement of UV LED light sources
Spectral range
340nm --- 420nm, calibrated at 395nm
UV LED light sources
Irradiance measuring range0 - 40000 mW/cm²
Irradiance resolution1 mW/cm²
Energy measuring range0 - 999999mJ/cm²
Energy measuring accuracy± 10% , ± 5% (typical)
Temperature measuring range-55°C - +125°C
Sampling speed2048 times/second
Irradiance data storage interval32 times/second
Temperature data storage interval2 times/second
Recording period32 min
Power supply2 AAA alkaline dry batteries
Display240*160 Dot matrix LCD
DimensionDiameter 120mm * Thickness 13mm
Weight327g

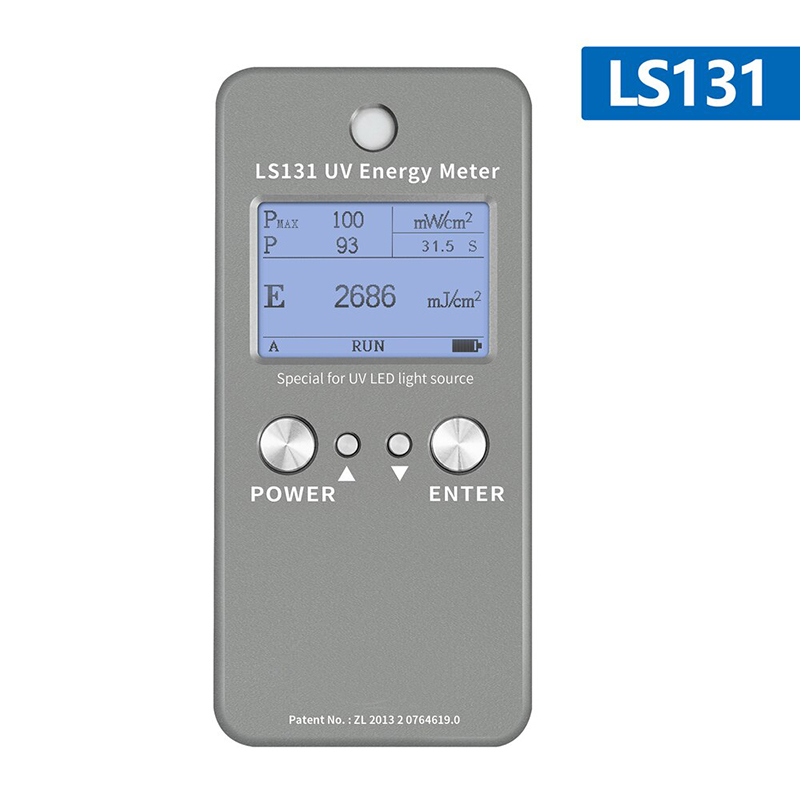

LS131
