Automatic Analog Polarimeter With 4 Measuring Modes
Zoom Browse
Product Name: Automatic Analog Polarimeter With 4 Measuring Modes
Product Numbers: POLA-11001
Product Specifications: Measuring range: 45 degree
Product Unit: Reasolution: 0.001 degree
Product Remark: 7 inch large touch screen,color LCD
Product Class:Measuring and Testing Instruments > Optical Instruments > Polarimeters
Product Details
【DateTime:2015-05-25 Browse:】【Font: Big Mid Small】【Print】【Close

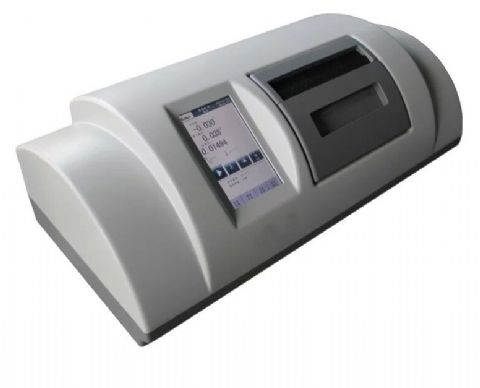

Automatic Analog Polarimeter With 4 Measuring Modes
Part No: POLA-11001
Rok polarimeter is a scientific instrument used to measure the angle of rotation caused by passing polarized light through an optically active substance. With Glan Thompson Prism, it provides cusotmers with more accuracy, more stable measuring rusult.
Main Features
     With Glan Thompson Prism, More accuracy, more stable
     With GLP, Data traceability, electronic signature
     7 inch large touch screen,color LCD
     LED light source
     Measuring range:±45º
     100 groups Data storage
     Selectable measruing accuracy.
     Can be connected with printer or network printer

Specifications:

Measuring range

±45°

Reasolution

0.001°

Accuracy

±0.01°(up to 15°); ±0.02°(above 15°)

Reproducibility

±0.004°

Temperature range

0-95

Temperature resolution

0.1

T.Control model

--------

T.Control range

--------

T.Control accuracy

--------

Sensitivity

min1%

Light source

LED light source,long time life for 100000 hours

Wavelength

589nm

Measuring mode

Opticalrotation;

Specific rotation;

Concentration;

International sugar scale.

Sample chamber

up to 200mm,package include:

200mm*1(glass tube)

100mm*1(glass tube)

Interface

RS232

Display

touch screen,color LCD

Database

100 group data

Optional accessories

--------

Voltage

220V±22V, 50Hz±1Hz

N.W./G.W.

28kg / 30kg

Dimension(L*W*H)

730mm*370mm*300mm

With packing dimension

880mm*590mm*420mm

Order number

POLA-11001
