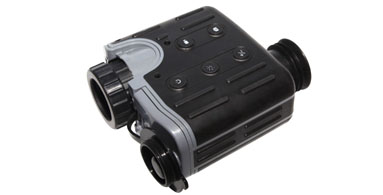

Thermal Imaging Monocular With Uncooled FPA Detector
Zoom Browse
Product Name: Thermal Imaging Monocular With Uncooled FPA Detector
Product Numbers: THIM-6023
Product Specifications: Array size/format: 384×288
Product Unit: Focus: Manual
Product Remark: China Thermal Imaging Monocular
Product Class:Measuring and Testing Instruments > Optical Instruments > Thermal Imaging Monocular-Binocular
Product Details
【DateTime:2014-11-22 Browse:】【Font: Big Mid Small】【Print】【Close
Thermal Imaging Monocular With Uncooled FPA Detector
      This kind of hand-held type thermal imaging monocular, of 384 x 288 resolution, small size, light weight, rugged design, easy operation, fit for all-weather reconnaissance of anti-smuggling, search and rescue and other using requirements in a variety of harsh environments
Features
-- 384×288 uncooled FPA detector
-- Real time of 50HZ
-- 1.8-meter drop resistance
-- One-hand operation, easy carrying
-- Monocular OLED display of 800*600
-- Photo and recording function
-- Cost effective
-- IP67
Specification:

Item

THIM-6023A

THIM-6023B

Detector characteristics

Detector type

Amorphous Silicon mirco-bolometer

Array size/format

384×288

Image manage

Field of view/min focus  distance

30.5°×22.9°

14.8°×11.1°

Spatial resolutions(IFOV)

1.38mrad

0.67mrad

NETD

≤0.08℃@30℃

Frame rate

50/60HZ

Focus

Manual

Electronic zoom

2X

Spectral range

8~14μm

Image display

Display

Monocular OLED display(800×600)

Image polarity

Hot black/hot white

Image storage

Storage card

2G TF card

File format

JPEG/MPEG4

Storage mode

Manual

Button Function

Power Button

Start up or Shut down

Brightness/Gain  adjustment

Five level adjustment

Calibration Button

Manual calibration

Manual Button

Short pressing for black white and hot white switching

Photo/Recording Button

Photo and recording

Power supply

Battery type

Li-Ion, rechargeable

Battery operating time

More than 3hours continuous operation

Charging system

Intelligent charger

External power

10~15V DC

Power consumption

≤4.5W

Environment

Operating temperature

-20℃~+50℃

Storage temperature

-45℃~+70℃

Humidity

≤90% non-condensing

Encapsulation

IP67

Drop resistance

1.8M,IEC68-2-32

Anti-shock

25G,IEC68-2-29

Vibration resistance

2G,IEC68-2-6

Physical  characteristics

Weight

<950g(With battery)

Dimension (WxHxD)

139mm×64mm×172mm

Interface

Extermal DC input

Yes

Video output

PAL

USB

Image measurement data transfer to PC

Distance

Human(Detection)

590m

1200m

Car(Detection)

800m

1680m

Human(Recognition)

190m

400m

Car(Recognition)

270m

560m

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
