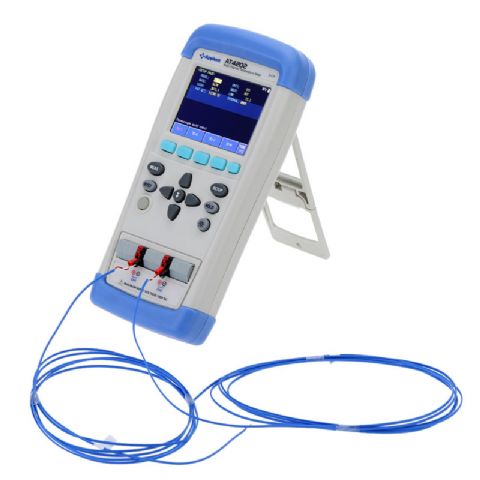

2-4-8 Mini Channel Temperature Meter
Part No:
TEME-AT4202 2 Channels
TEME-AT4204 4 Channels
TEME-AT4208 8 Channels
Feature:
-Portable, Small size, easily to be held
-Thermocouple: J/K/T/E/S/N/B/R
-TFT color display
-Set high and low indicator
-Three test speed
-8.4V Battery Powered
Specification:
| Graduation |
Thermocouple: J/K/T/E/S/N/B |
| Accuracy |
0.2%+1ºC |
| Range |
-200ºC~1300ºC(variation depend on graduation) |
| Resolution |
0.1C |
| Channels |
8 channels 4 Channels 2 Channels |
| Speed |
Fast:100ms/channel Medium:500ms/channel Low:1s/channel |
| Correction |
Error correction for each channel |
| Comparator |
High & low beep function |
| Interface |
Mini-USB |
| |
High & low beep function |
| Cold Junction |
Accuracy:0.5ºC |
| Others |
2.8 inches True-color 16M TFT-LCD LCD display, touch screen, USB communication, compatible SCPI instruction set, switch in both English and Chinese:adjustable back light; automatic power off |
| Size |
Input:100-240V~50/60Hz 0.35A Output:9V 1A DC |
| Power Supply |
8.4V, Li, 1400mA rechargeable battery |
| Accessories |
K thermocouple 8 teams(2m/team) ATL909: DC power adaptor ATL805: Lithium battery ATL105Mini-USB communication cable ATS42 data acquisition software |
