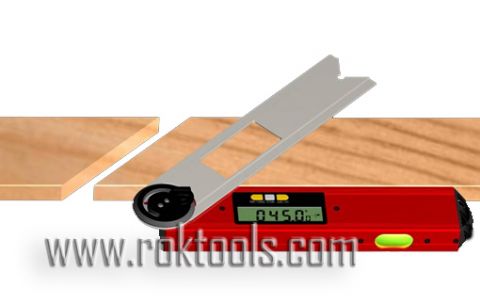

Digital Angle Finder
Zoom Browse
Product Name: Digital Angle Finder
Product Numbers: AF-02
Product Specifications: 0.05/3
Product Unit: Digital Angle Finder
Product Remark: Accuracy: 0.1
Product Class:Measuring Tools > Angle and Square > Angle Finder
Product Details
【DateTime:2008-11-07 Browse:】【Font: Big Mid Small】【Print】【Close
1. Easy to measure all kinds of angle and draw lines.
2. Best tool for power hand saw to cut the wood at all angles
3. Conversion between absolute measurement and relative measurement
4. Display always reads upright, no matter which way it is turned.
5. Easy calibration and Zero setting
6. Analogue quadrant showing for easy reading
7. Best tool for table saw and miter saw, make the working more safety and convenient.
8. High accuracy level bubble for measuring horizontal level easily
9. Lock the moving blade at any angle.
Specificationss:
1. Resolution: 0.05o/3
2. Accuracy: 0.1o
3. Measuring Range: 0 ~ +/-225o
4. Working Current: <80uA
5. Work Temperature: +5oC~+45oC
6. Work Humidity: <85%RH
7. Length: 10 inch
8. Waterproof: IP54
9. Power: 3V CR2032Lithium battery
10. Battery Life: more than 2000 hours
Order No
Range
Resolotion
Accuracy
Remarks
AF-01
0~360o
0.05o
≤0.1o
      IP54
AF-02
0~360o
0.05o
 ≤0.1o
IP54
