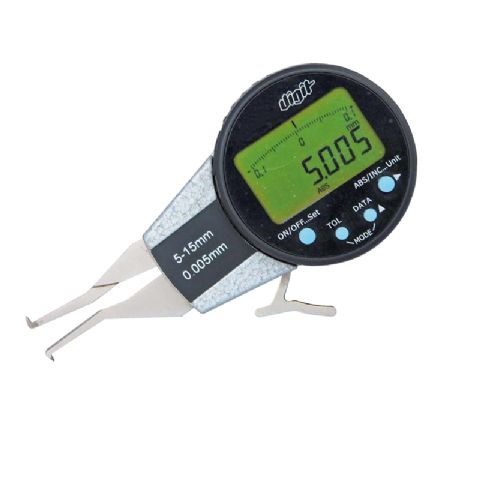

Digital Inside Caliper Gauge Groove inside Width Measuring Tools
Zoom Browse
Product Name: Digital Inside Caliper Gauge Groove inside Width Measuring Tools
Product Numbers: CG-32201
Product Specifications: Range: 5-15mm, 10-20mm, 20-30mm
Product Unit: Dial Rotatable: 170 degree
Product Remark: China inside caliper gauge manufacturer
Product Class:Measuring Tools > Caliper Gauges > Inside Caliper Gauge
Product Details
【DateTime:2021-09-07 Browse:】【Font: Big Mid Small】【Print】【Close

Digital Inside Caliper Gauge Groove inside Width Measuring Tools

Features:


1.For measuring the hole, the hole inside the groove dimensions and other difficult to measure area.

2.Dial can be rotated ± 170 degrees , at versions angle

3.That is an measurement of the start value display.

4.Digital display and analog meter display, resolution analog display can be switched automatically.

5. Analog display range: ± 20 grid.

6. Resolution: 0.01mm/0.0005

7.Anti-dust cap

8. Adjustable steel dial ring

9. With tolerance bar on the display

Specification:

Travel: 10mm
Order No. Range Accuracy Tip Size Tip Type(mm) Length of jaw (mm)
CG-32201 5-15mm 0.02mm 1.0*1.5 tip 20
CG-32202 10-20mm 0.02mm 1.5*3.0 tip 25
CG-32203 20-30mm 0.02mm 2.0*6.5 tip 30
CG-32204 30-40mm 0.02mm 2.5*9.0 tip 30
CG-32205 40-50mm 0.02mm 2.5*9.0 tip 30
CG-32206 10-20mm 0.02mm 1.5*3.0 ball 25
CG-32207 20-30mm 0.02mm 2.0*6.5 ball 30
CG-32208 30-40mm 0.02mm 2.5*9.0 ball
30
CG-32209 40-50mm 0.02mm 2.5*9.0 ball
30



Travel 20mm


Order No. Range Accuracy Tip Size Tip Type(mm) Length of jaw (mm)
CG-32301 5-25mm 0.03mm 1.0*1.5 tip 35
CG-32302 10-30mm 0.03mm 2.0*3.5 tip 55
CG-32303 20-40mm 0.03mm 3.0*6.5 tip 80
CG-32304 30-50mm 0.03mm 2.5*8.5 tip 80
CG-32305 40-60mm 0.03mm 3.0*8.5 tip 80
CG-32306 10-30mm 0.03mm 2.0*3.5 ball 55
CG-32307 20-40mm 0.03mm 3.0*6.5 ball 80
CG-32308 30-50mm 0.03mm 3.0*8.5 ball
80
CG-32309 40-60mm 0.03mm 3.0*8.5 ball
80
