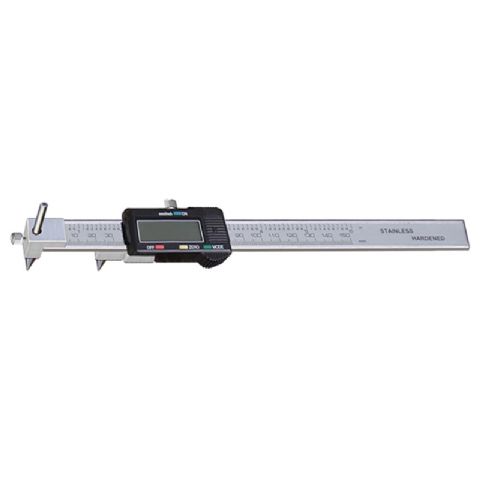

Back-Jaw Centerline Digital Caliper With Conical Tipped Jaw
Zoom Browse
Product Name: Back-Jaw Centerline Digital Caliper With Conical Tipped Jaw
Product Numbers: CPDC-11241
Product Specifications: Conical Tipped Jaw
Product Remark: Designed for measuring the distance fromEdge-to-Center
Product Class:Measuring Tools > Calipers > Back-Jaw Centerline Caliper
Product Details
【DateTime:2020-03-21 Browse:】【Font: Big Mid Small】【Print】【Close

Back-Jaw Centerline Digital Caliper With Conical Tipped Jaw
Digital Caliper

-Specially designed to measure the distance between two centers or the distance from an edge to center

-Provided with jaws on the back of the slider, measurements can be read easily by looking down.

-Direct reading of pitch measurements is available due to the offset value setting function.

Features:

---Back-jaw on the slider
---Direct reading of pitch measurements is available due to the offset value setting function
---Designed for measuring the distance between two holes.
---Clear Display
---supplied with fitted box for long distance shipment
---Stainless Steel, ground and lapped
---With Data output.

---The length of removeable jaw can be changed as customers request.

---Zero-setting

--- inch/mm conversion

Specification:
Order NO Range Accuracy Over length Length of Mobile jaw Diameter of conical
CPDC-11241 10-200mm 0.1mm 310mm 45mm 10mm
CPDC-11241 10-300mm 0.1mm 410mm 45mm 10mm
CPDC-11241 20-500mm 0.1mm 692mm 45mm 20mm
CPDC-11241 30-1000mm 0.12mm 1242mm 70mm 30mm
CPDC-11241 30-1500mm 0.15mm 1745mm 70mm 30mm
