Heavy Duty Veriner Caliper with Fine Adjustment
Zoom Browse
Product Name: Heavy Duty Veriner Caliper with Fine Adjustment
Product Numbers: HD-5013
Product Specifications: Range:500-3000mm
Product Unit: Resolution: 0.02,0.05, 0-05/1/128
Product Remark: With Upper Knife-edge
Product Class:Measuring Tools > Calipers > Heavy Duty Calipers
Product Details
【DateTime:2013-11-18 Browse:】【Font: Big Mid Small】【Print】【Close】
Heavy Duty Veriner Caliper with Fine Adjustment
Designed for long range measurement, General speaking, this kind of calipe has longer and biger jaw than normal one.  The beam is thicker and heavier than normal size.
Brand: ROKTOOLS
Features:
With upper knife-edge for external diameter measurement
With fine adjustment carriage to feed the slider finely
Different resolution selectable.
Stainless steel or carbon steel.
Internal measurement jaws are rounded to provide accurate measurement of internal diameters with minimum internal measuring capability of 20mm
Satin chrome finish
Hardened steel, ground, machine polished surface.
With thumb wheel
Packed with wooden box.

Specification:

Resolution: 0.05mm

ItemNo.
            		Item No.
   (Long Jaw)		 Range(mm) Grad.(mm) A(mm) B(mm) C(mm) D(mm) H(mm) Accuracy
Normal jaw Long jaw Normal jaw Long jaw
HD-3013
 HD-3013L
0-300
0.05
60
90
10
10
17
36.5
+/-0.07mm
+/-0.10mm
HD-5013
HD-5013L
0-500
0.05
100/125
150
10
12
25
55
HD-6013
 HD-6013L
0-600
0.05
100/125
150
10
12
25
55
+/-0.10mm
+/-0.13mm
 HD-8013
 HD-8013L
0-800
0.05
125/150
200
20
18
32
64
+/-0.14mm
 HD-10013
 HD-10013L
0-1000
0.05
125/150
200
20
18
32
64
  HD-15013
 HD-15013L
0-1500
0.05
125/150
200
20/30
20
32/41.5
6/73
+/-0.15mm
+/-0.18mm
 HD-20013
HD-20013L
0-2000
0.05
150
200/300
20/30
20
52
73
+/-0.20mm
+/-0.26mm
 HD-30013
 HD-30013L
0-3000
0.05
150
200/300
20/30
20
52
73
+/-O.30mm
+/-0.35mm



Resolution: 0.02mm

ItemNo.
            		Item No.
   (Long Jaw)		 Range(mm) Grad.(mm) A(mm) B(mm) C(mm) D(mm) H(mm) Accuracy
Normal jaw Long jaw Normal jaw Long jaw
HD-3023
 HD-3023L
0-300
0.02
60
90
10
10
17
36.5
+/-0.04mm
+/-0.05mm
+/-0.06mm
+/-0.08mm
HD-5023
HD-5023L
0-500
0.02
100/125
150
10
12
25
55
HD-6023
 HD-6023L
0-600
0.02
100/125
150
10
12
25
55
+/-0.07mm
+/-0.10mm
 HD-8023
 HD-8023L
0-800
0.02
125/150
200
20
18
32
64
+/-0.11mm
 HD-10023
 HD-10023L
0-1000
0.02
125/150
200
20
18
32
64
  HD-15023
 HD-15023L
0-1500
0.02
125/150
200
20/30
20
32/41.5
6/73
+/-0.10mm
+/-0.13mm
 HD-20023
HD-20023L
0-2000
0.02
150
200/300
20/30
20
52
73
+/-0.14mm
+/-0.20mm
 HD-30023
 HD-30023L
0-3000
0.02
150
200/300
20/30
20
52
73
+/-O.26mm
+/-0.35mm



Resolution: 0.02mm/0.001"

ItemNo.
            		Item No.
   (Long Jaw)		 Range(mm) Grad.(mm) A(mm) B(mm) C(mm) D(mm) H(mm) Accuracy
Normal jaw Long jaw Normal jaw Long jaw
HD-3033
 HD-3033L
0-300
0.02/0.001"
60
90
10
10
17
36.5
+/-0.04mm
+/-0.05mm
+/-0.06mm
+/-0.08mm
HD-5033
HD-5033L
0-500
0.02/0.001"
100/125
150
10
12
25
55
HD-6033
 HD-6033L
0-600
0.02/0.001"
100/125
150
10
12
25
55
+/-0.07mm
+/-0.10mm
 HD-8033
 HD-8033L
0-800
0.02/0.001"
125/150
200
20
18
32
64
+/-0.11mm
 HD-10033
 HD-10033L
0-1000
0.02/0.001"
125/150
200
20
18
32
64
  HD-15033
 HD-15033L
0-1500
0.02/0.001"
125/150
200
20/30
20
32/41.5
6/73
+/-0.10mm
+/-0.13mm
 HD-20033
HD-20033L
0-2000
0.02/0.001"
150
200/300
20/30
20
52
73
+/-0.14mm
+/-0.20mm
 HD-30033
 HD-30033L
0-3000
0.02/0.001"
150
200/300
20/30
20
52
73
+/-O.26mm
+/-0.35mm

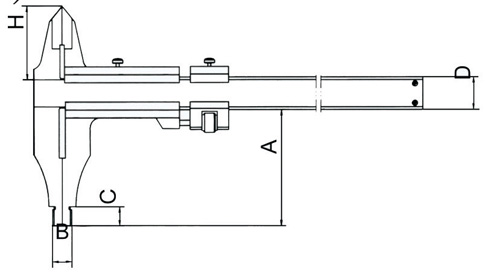

Heavy Duty Veriner Caliper drawing
