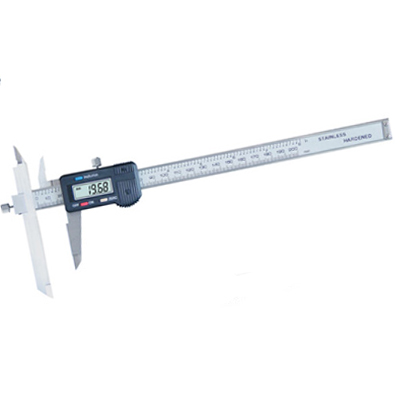

Digimatic Offset Digital Caliper
Zoom Browse
Product Name: Digimatic Offset Digital Caliper
Product Numbers: OFDC-1001
Product Specifications: Range: 0-150mm/ 200mm/300mm
Product Unit: Range(inch): 0-6, 8 12
Product Class:Measuring Tools > Calipers > Offest Calipers
Product Details
【DateTime:2014-06-02 Browse:】【Font: Big Mid Small】【Print】【Close
Digimatic Offset Digital Caliper
Part No: OFDC-1001
Digimatic offset digital caliper has a sliding main scale jaw for measurement of step sections,Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining
 Features:
*The left jaw can slide up and down to facilitate measurement of stepped sections
*Zero setting at any position
*Made of stainless steel
*Metric/Inch system conversion at any position, with data output interface


Part No
Range
Resolution
Accuracy
L
p
b
c
d
e
OFDC-1001
0-150mm/0-6
0.01mm
+/-0.04mm/0.0016
249
110
40
10
16
7
OFDC-1002
0-200mm/0-8
0.01mm
+/-0.04mm/0.0016"
299
120
50
10
16
7
OFDC-1003
0-300mm/0-12
0.01mm
+/-0.05mm/ 0.002
399
130
60
10
16
7
OFDC-1005
0-500mm/0-20
0.01mm
+/-0.07mm/0.0028
685
210
100
22
24
11

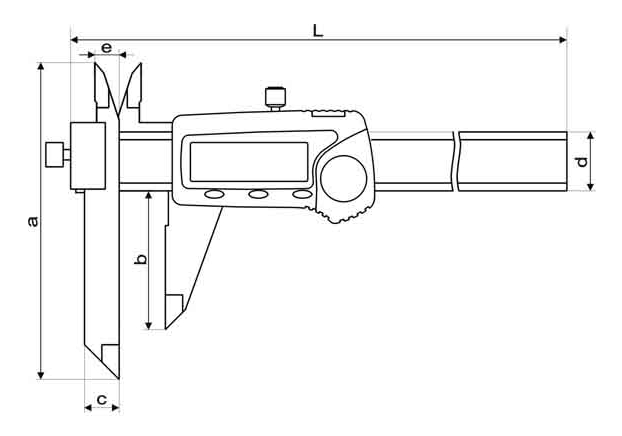

drawing
