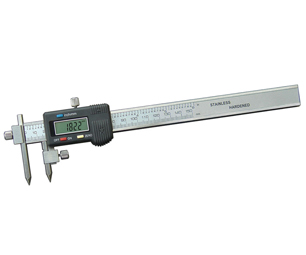

Offset Centerline Electronic Digital Calipers
Part No: OFDC-3001
Features:
Specially designed for center to center distance measurements on the same and offset planes. Distance between a plane and a hole can also be obtained.
Can also measure from edge to center
Supplied in fitted plastic case
Hole diameter should be in the range of 1mm-10mm
Power on/off
Zero-setting at any position for absolute and relative measurement.
Data output
Specification:
Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)
Resolution*: 0.01mm or .0005"/0.01mm
Graduation**: 0.05mm
Display*:LCD
|
Part No
|
Range
|
Resolution
|
Accuracy
|
A
|
B
|
D
|
|
|
OFDC-3001
|
5-150
|
0.01mm
|
+/-0.05mm
|
60
|
35
|
16
|
5
|
|
OFDC-3011
|
10-150
|
0.01mm
|
|
100
|
40
|
16
|
10
|
|
OFDC-3002
|
5-200
|
0.01mm
|
+/-0.07mm
|
60
|
35
|
16
|
5
|
|
OFDC-3012
|
10-200
|
0.01mm
|
+/-0.09mm
|
100
|
40
|
16
|
10
|
|
OFDC-3003
|
5-300
|
0.01mm
|
+/-0.09mm
|
60
|
35
|
16
|
5
|
|
OFDC-3013
|
10-300
|
0.01mm
|
+/-0.09mm
|
100
|
40
|
16
|
10
|
|
OFDC-3005
|
5-500
|
0.01mm
|
+/-0.09mm
|
80
|
45
|
24
|
5
|
