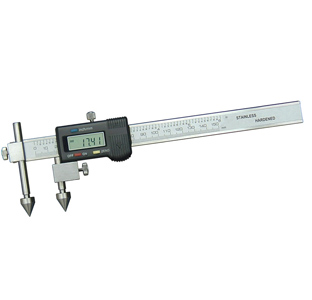

Offset Centerline Digimatic Vernier Caliper with Conical Jaw
Zoom Browse
Product Name: Offset Centerline Digimatic Vernier Caliper with Conical Jaw
Product Numbers: OFDC-4001
Product Specifications: Range: 10-150mm, 10-200mm, 10-300mm
Product Unit: Resolution: 0.01mm
Product Remark: Hardened stainless steel.
Product Class:Measuring Tools > Calipers > Offest Calipers
Product Details
【DateTime:2014-06-06 Browse:】【Font: Big Mid Small】【Print】【Close】
Offset Centerline Digimatic Vernier Caliper with Conical Jaw
Part No: OFDC-4001
Features:
  • Specially designed for center to center distance measurements on the same and offset planes
  • Center distance over Φ1 between two holes can be obtained by adjusting the length of a measuring spindle on the left and moving the slider.
  • Auto Power off
  • Zero Setting
  • With Conical jaw
  • Tip 1 mm. .
    Part No
    Range
    Resolution
    Accuracy
    L
    Jaw
    OFDC-4001
    10-150mm
    0.01mm
    +/-0.05mm
    236

    5
    OFDC-4002
    10-200mm
    0.01mm
    +/-0.07mm
    246
    5
    OFDC-4003
    10-300mm
    0.01mm
    +/-0.09mm
    396
    5
