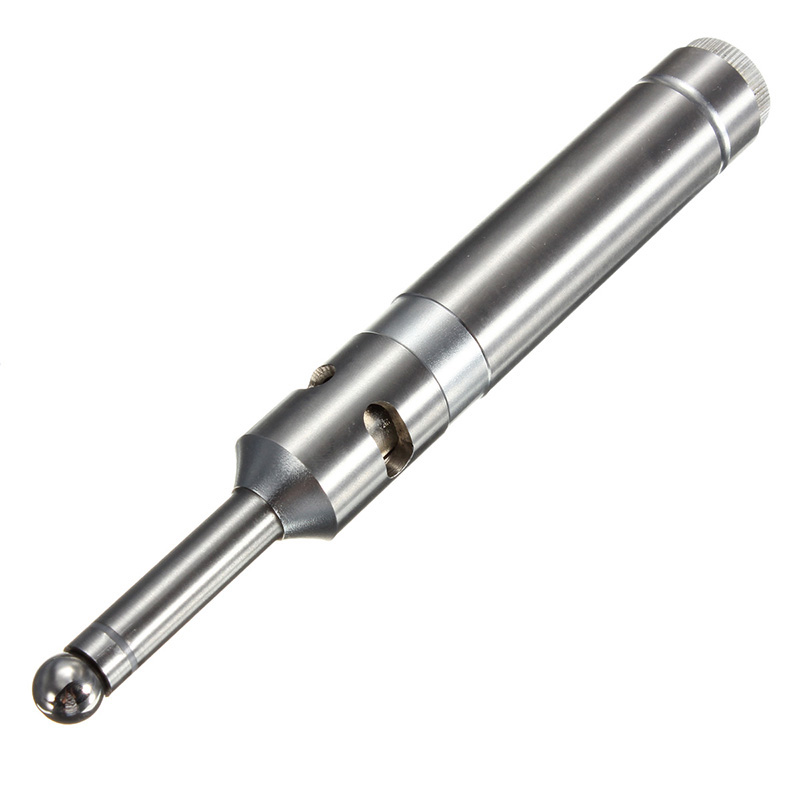

Electronic Optical Edge Finder
Zoom Browse
Product Name: Electronic Optical Edge Finder
Product Numbers: EF-01
Product Specifications: 10mm
Product Unit: Siren or optical
Product Remark: Quickly locate work edges
Product Class:Measuring Tools > Edge Finder Center Finder > Edge Finder
Product Details
【DateTime:2009-12-13 Browse:】【Font: Big Mid Small】【Print】【Close
Electronic Edge Finder an accurate and time saving tool for precisely locating work edges, shoulders, grooves etc. Ideal for use on both conventional and CNC equipment
The edge finder lights up or buzz instantly when the stylus touches the work edge
Precision steel body construction
Red LED indicator with replaceable batteries

Stem Dia
Length
Ball dia
Repeatability
Remarks
Order No
Remarks
Order No
Φ20mm
98mm
Φ10
0.01mm
Optical
EF-001E
Siren
EF-001S
3/4in
3-7/8in
0.4in
0.0005in
Optical
EF-002E
Siren
EF-002S
Φ20mm
164mm
Φ10
0.01mm
Optical
EF-003E
Siren
EF-003S
Φ20mm
176mm
Φ10
0.01mm
Optical
EF-004E
Siren
EF-004S
Φ20mm
190mm
Φ10
0.01mm
Optical
EF-005E
Siren
EF-005S
3/4in
7-1/2"
0.4in
0.0005in
Optical
EF-006E
Siren
EF-006S
Φ32mm
176mm
Φ10
0.01mm
Optical
EF-007E
Siren
EF-007S

Edge Finder
