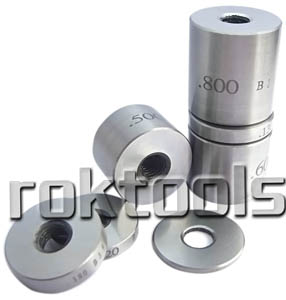

36PCS Round Space Block Set With Case
Zoom Browse
Product Name: 36PCS Round Space Block Set With Case
Product Numbers: GB-54101
Product Specifications: 36pcs with different thread
Product Remark: To set the sine vise to the correct angle
Product Class:Measuring Tools > Gauge Block Pin Gauge > Space Block Set
Product Details
【DateTime:2015-01-23 Browse:】【Font: Big Mid Small】【Print】【Close
36PCS Round Space Block Set With Case
Description: For quickly setting stops and setups on lathes, milling machines and drill presses, setting sine bars, etc
Features:
    ----Fitted case included.
    ----Accuracy +-0.0001".(See below chart)
    ----For quickly setting stops and setups on lathes, milling machines and drill presses, setting sine bars, etc.
    ----Size marked on each block.
    ----Overall diameter 3/4". ID threaded: M6 X 1.0
    ----Hardened to RC 58 - 60.
    ----Four connecting screws supplied to form desired length.
    ----Furnished in fitted plastic case.
    ----Meets or exceeds federal specifications

Specification:
Order No  (Steel)
Diameter
I.D.  Thread
Accuracy
GB-54101
3/4"
 1/4-28
+/-0.0001"
GB-54102
3/4"
 M6
+/-0.0001"
GB-54103
3/4"
 1/4-28
+/-0.00005"
