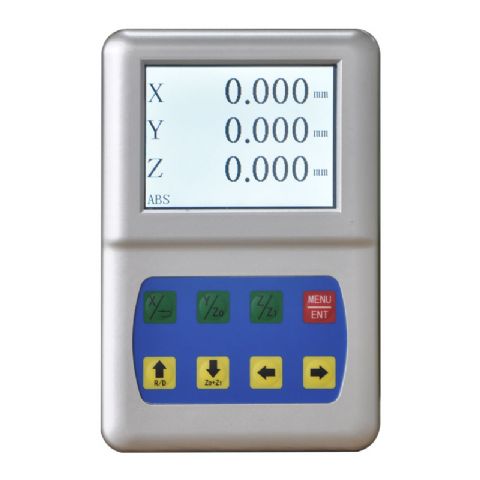

Mini Small Size 3 Axis 2 Axis CNC Machine Digital Readout DRO
DRDO-24503 3 Axises
DRDO-24502 2 Axises
DRDO-24501 1 Axis
The mini readout is suitable for other brand linear encoders.
Features:
-3.5 ture color LCD screeen,easier to readout
-RPM function(Optional, not standard package)
-ABS/INC mode. 200sets SDM coordinates
-RS232 protocol(optional)
-REF function
-Lathe mode with Z+Z1 and dimater/radius conversion
-Auto checking the inner data and power supply
-Support the linear compensation
-Can connect with both linear scale and rotary encoder.
Package:
– English manual
– Mounting bracket
– Power lead (different countries request different power lead)
Function:
-Data imputing
-Zero function
-Data recovery
-MM/INCH
-Decimal digits setting under inch model.
-ABS/INC
-1/2 function
-Z+Z1 (for 3 axis lathe)
-SDM coordinate
-Resolution setting
-Encoder setting(linear /Rotary)
-Angle measurement
-Counting direction setting
-Rotational speed measurement
-Turnon/off rotational speed
-REF function
-6-7 digits display
-Axis setting
-Language setting
-Linear compensation
-Brightness/background color setting
-Reset
-Rs232 protocol
-Power off memory
-Help text.
Specification:
Power Supply: AC 80V-260V, 50-60Hz
Power consumption：5 W
Operating Temp: -10-60 degree
Storage temp: -30-70 degree
Relative humidity(RH): <90%
Resolution： 0.1um, 0.2um, 0.5um, 1um, 2um, 2.5um 5um, 10um
Weight: 0.4kg
Size: 160*105*67mm
Interface DB 9-pin socket
Input signal: RS422/TTL
Input signal frequency: <2MHz
