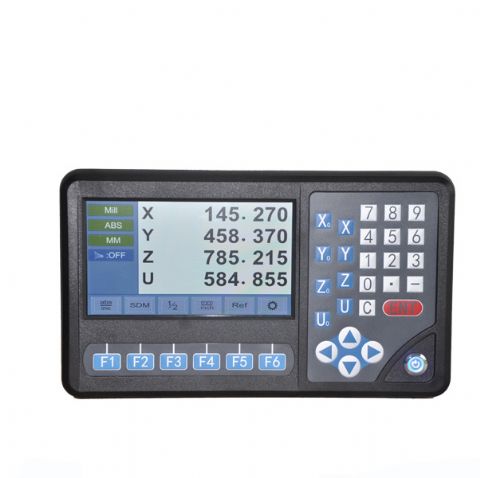

CNC Accessories Electronic Digital Readout DRO 1-5 Axis
The readout DRDO-28004 is designed for every machine , such as lathe, mill, edm and grinding machine. Easily make circular hole patterns, linear hole patterns, radius and much more
Features:
- 200 auxiliary zero:
- Gamma calculator (for milling machine);
- Power-down memory:
- Non-linear error compensation and linear error compensation;
- Points in the function:
- Inch / metric mode.
- PCD circular sub-holes (for milling, EDM)
- Slash punch (for milling machine)
- Tool compensation function (for milling machine);
- Taper measurement function (for lathe);
- Slope calculation (for milling machine);
- R arc function (for milling machine);
- 200 tool magazine (for lathe);
- EDM functions (for EDM, ordered separately)
- RS-232 communication (ordered separately)
- Numerical filtering function
- EDM depth control.
specification:
-Voltage; AC-80V-260V/50Hz-60Hz
-Power: 15W
-Times Frequency: 4X
-Readout box imput signal: TTL
-Input frequency: >5Mhz
-Resolution: 10um, 5um, 2.5um, 2um, 1um, 0.5um, 0.2um, 0.1um.
Package:
- English help file and menu (on the display)
– Mounting bracket
– Power lead (ask sales reps for more information)
