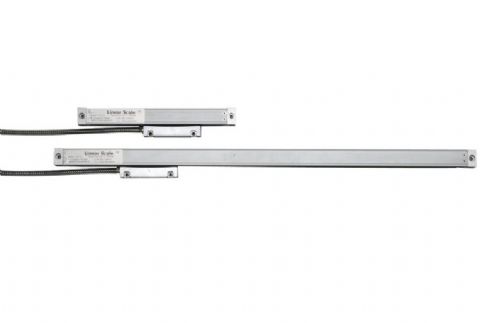

Optical Slim Linear Scale 50-600 mm
Zoom Browse
Product Name: Optical Slim Linear Scale 50-600 mm
Product Numbers: LISC-10301
Product Specifications: Range: 50-600 mm
Product Unit: Section: 18*23
Product Remark: Signal: 3M
Product Class:Measuring Tools > Linear Scale and Readout > Linear Scale
Product Details
【DateTime:2014-10-17 Browse:】【Font: Big Mid Small】【Print】【Close
Slim Linear Scale 50-600 mm

Accuracy: ±3/±5/±10μm(20°C/68°F)
Bench marks:The grating period: 20um optical linear scale.
Grating system: The tansmissive and infrared optical measuring system, the infrared wave length is 880nm.
Reading head sliding system: vertical or 45°five precision bearing system

Specifcation:
   --Sectional Dimensions(mm)   18x23
   --Accuracy   ±3/±5/±10um(20°C/68°F)
   --Biggest Working Speed:  60m/min
   --Zero Reference Point: 1 per 100mm
   --Sealing Protection:  IP55
   --Resolution(um):  0.5/1/5
   --Output signal:  TTL/EIA-422-A/1Vpp
   --Voltage:  5V/12V/24V/36V
  --Cable: 3m
Order No
Range
Resolution
LISC-10301
50-100mm
0.005mm
LISC-10302
101-200mm
0.005mm
LISC-10303
201-300mm
0.005mm
LISC-10304
301-400mm
0.005mm
LISC-10305
401-500mm
0.005mm
LISC-10306
501-600mm
0.005mm
