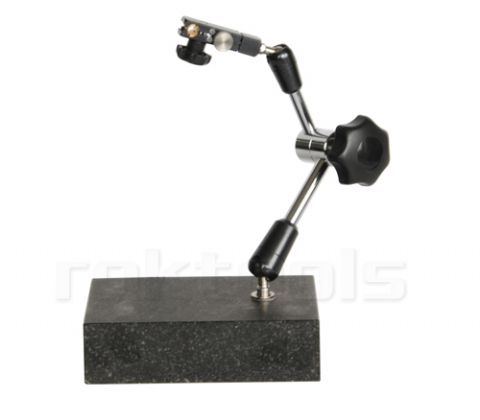

The measuring table is different from the magetic base, as its base is made of granite. and the base must be very flat.



-Highly Flat granite base, living up to DIN876 Grade 00

-With Fine adjustment

-Dovetail Groove for test indicator

-Clamp hole : Metric (inch)  8mm  (or 3/8"). Optional

-Tapped hole: M8*1.25mm



Specification:



Order NO.	Base Size(L*W*H)	Stem Length	Weight(KG)
META-1001	150*100*40	260	2.4
META-1002	200*150*50	340	5.7
META-10013	300*200*50	460	10.8
