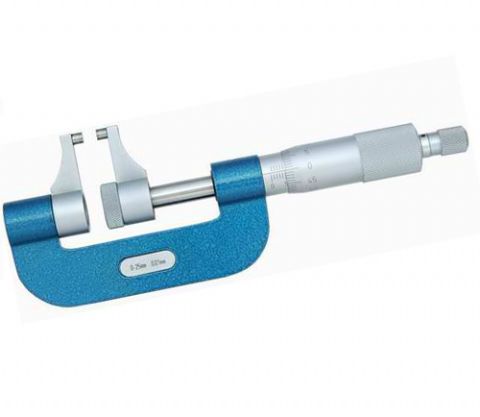

Mechanic Caliper Type Outside Micrometer
Designed for measuring the narrow slot or hart to reach parts.
Part No: DM-123401
Range: 0-25mm/0-1inch
Features:
With Ratchet Stop for constant force.
With a standard bar except 0-25mm and 0-1"" model.
Packed with plastic box or wooden box.
painted frame.
Resolution: 0.01mm/0.001inch.
Carbide measuring faces.
Metric
|
Order NO
|
Range
|
Resolution
|
|
DM-123401
|
0-25mm
|
0.01mm
|
|
|
25-50mm
|
0.01mm
|
|
|
50-75mm
|
0.01mm
|
|
|
75-100mm
|
0.01mm
|
Inch
|
Order NO
|
Range
|
Resolution
|
|
DM-123401Y
|
0-1"
|
0.0001"
|
|
|
1-2"
|
|
|
|
2-3"
|
|
|
|
3-4"
|
|
