Elctronic Digital Micrometer Ranging from 0 to 300mm
Zoom Browse
Product Name: Elctronic Digital Micrometer Ranging from 0 to 300mm
Product Numbers: DM-013
Product Specifications: Range: 0-25mm, 25-50mm, 50-75mm, 75-100mm
Product Unit: Resolution: 0.001mm/0.0005inch
Product Remark: Three Keys
Product Class:Measuring Tools > Micrometer > Electronic Digital Micrometer
Product Details
【DateTime:2014-05-28 Browse:】【Font: Big Mid Small】【Print】【Close
Elctronic Digital Micrometer Ranging from 0 to 300mm

Features:
* Extra Large LCD Screen
* High accuracy

* Data output
* With a High Quality Plastic Protective Case
* Metric/Inch conversion
* Satin-Chrome Finish, Carbide Faces

Specifications:
*Color: Dark blue, Grey
*Range: 0-25mm,          25-50mm,            50-75mm,        75-100mm
               100-125mm,  125-150mm         150-175mm,   175-200mm
                200-225mm,  225-250mm         250-275mm,   275-300mm
* Resolution: 0.001mm/0.00005"
* Accuracy: 0.002mm
* Power supply: One silver-oxide button battery SR44 (1.5V)
* Operating temperature: 0-+40°C
* Storage temperature: -20-+70°C
* Humidity influence: No influence within relative humidity less than80%
* Spindle: 6.5mm
Display Szie: 35*15mm
* Figure Height: 10mm
Package:
*1 Wrench
*1 User manual

*1  Setting Bar for above 25mm micrometer

Order No
Range
Resolution
DM-013
0-25mm
0.001mm
DM-113
25-50mm
0.001mm
DM-213
50-75mm
0.001mm
DM-313
75-100mm
0.001mm
DM-413
100-125mm
0.001mm
DM-513
125-150mm
0.001mm
DM-613
150-175mm
0.001mm
DM-713
175-200mm
0.001mm
DM-813
200-225mm
0.001mm
DM-913
225-250mm
0.001mm
DM-1013
250-275mm
0.001mm
DM-1113
275-300mm
0.001mm

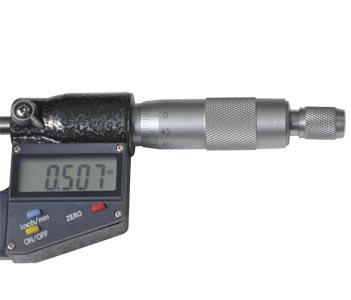

micrometer display and function
