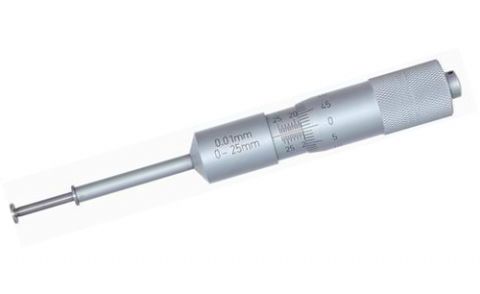

Groove Micrometers
Zoom Browse
Product Name: Groove Micrometers
Product Numbers: DM-123801
Product Specifications: 0-100mm/0-4"
Product Remark: Without measuring force
Product Class:Measuring Tools > Micrometer > Groove Micrometers
Product Details
【DateTime:2010-11-03 Browse:】【Font: Big Mid Small】【Print】【Close
Groove Micrometers Features :
1. Resolution: 0.01mm/0.001"
2. Provided 2 types of laser engraved graduation.

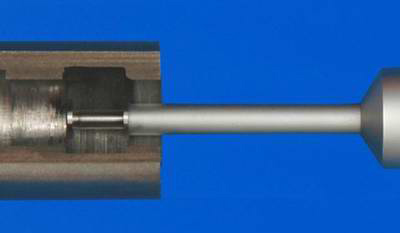

3. Flanged spindle to measure width, depth and location of grooves, inside/outside bores and tubes
Metric
Order NO
Range(outside)
Range(inside)
DM-123801
0-25mm
1.6-26.5mm
DM-123802
25-50mm
26.5-51.5mm
DM-123803
50-75mm
51.5-76.5mm
DM-123804
75-100mm
76.5-101.5mm

Inch
Order NO
Range(outside)
Range(inside)
DM-123801Y
0-1"
0.06-1.05"
DM-123802Y
1-2"
1.05-2.05"
DM-123803Y
2-3"
2.05-3.05"
DM-123804Y
3-4"
3.05-4.05"

groove micrometer
