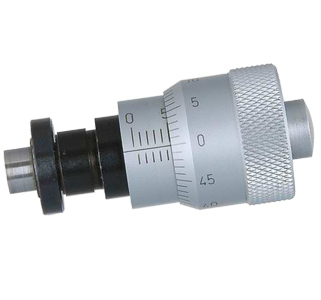

Mirometer Head with 20mm Large Thimble Diameter
The diameter of a thimble greatly affects its usability and the fineness of positioning. A small diameter thimble allows quick positioning whereas a large-diameter thimble allows fine positioning and easy reading fo the graduations.
Part No: MD-420401
Features:
Large diameter up to 20mm for fine positioning.
Spindle: 6.5mm
Overall length: 42mm
With flat end and spherical end.
With or Without clamp nut.
|
Order NO
|
Range
|
Spindle Tip
|
Stem
|
|
MD-420401
|
0-6.5mm
|
Flat(Carbide)
|
Without clamp nut
|
|
|
|
Spherical SR3
|
Without Clamp nut
|
|
Order NO
|
Range
|
Spindle Tip
|
Stem
|
|
MD-420403
|
0-6.5mm
|
Flat(Carbide)
|
With Clamp nut
|
|
|
|
Spherical SR3
|
With Clamp nut
|
Inch
|
Order NO
|
Range
|
Spindle Tip
|
Stem
|
|
MD-420401Y
|
0-0.25inch
|
Flat(Carbide)
|
Without clamp nut
|
|
|
|
Spherical SR3
|
Without Clamp nut
|
|
Order NO
|
Range
|
Spindle Tip
|
Stem
|
|
MD-420404Y
|
0-0.25inch
|
Flat(Carbide)
|
With Clamp nut
|
|
|
|
Spherical SR3
|
With Clamp nut
|
