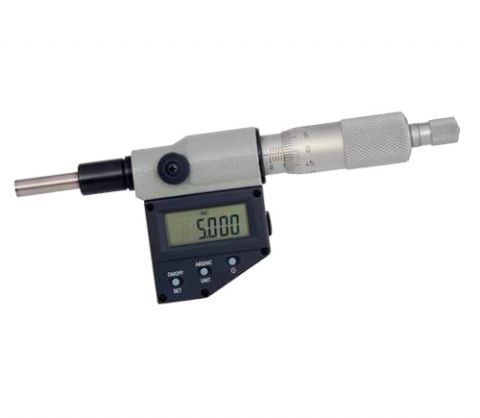

Should be mounted by the stem in an accurately machined hole using a clamping method that does not exert excessive force on the stem. Key factors in selecting a micrometer head are the measurng spindle face, graduations, range, thimble diameter, etc.



     Water and dust profection level; IP 54

     Auto Power off

     Battery : LR44 or SR44

     Ratchet stop.

     Chrome plated

     Resolution digital : 0.001mm/0.00005

                      head: 0.01mm/0.0001"

     With data ouput(software and cable are optional)

     Flat and Spherical measuring face.

     With or without clamp nut

Order NO	Range	Spindle Tip	Stem
MD-430101	0-25mm	Flat(Carbide)	Plain
MD-430102	0-25mm	Spherical SR5	Plain
MD-430103	0-25mm	With non-rotating device	Plain
MD-430104	0-25mm	Flat(Carbide)	With clamp nut
MD-430105	0-25mm	Spherical SR5	With clamp nut
MD-430106	0-25mm	With non-rotating device	With clamp nut
MD-430107	0-50mm	Flat(Carbide)	Plain
MD-430108	0-50mm	Spherical SR 5	Plain





Order NO	Range	Spindle Tip	Stem
MD-430101Y	0-1	Flat(Carbide)	Plain
MD-430102Y	0-1	Spherical SR5	Plain
MD-430103Y	0-1	With non-rotating device	Plain
MD-430104Y	0-1	Flat(Carbide)	With clamp nut
MD-430105Y	0-1	Spherical SR5	With clamp nut
MD-430106Y	0-1	With non-rotating device	With clamp nut
MD-430107Y	0-1	Flat(Carbide)	Plain
MD-430108Y	0-1	Spherical SR 5	Plain
