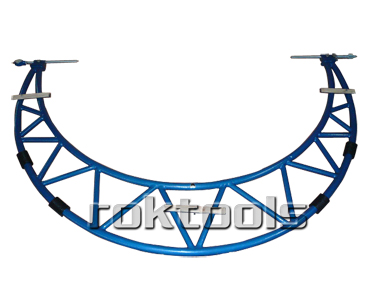

1000-1500mm Outside Micrometer with Dial Indicator
Zoom Browse
Product Name: 1000-1500mm Outside Micrometer with Dial Indicator
Product Numbers: DM-201210
Product Specifications: Range: 1000-1500mm
Product Unit: Tubular Frame
Product Remark: Travel of dial indicator: 5mm
Product Class:Measuring Tools > Micrometer > Outside Micrometers
Product Details
【DateTime:2013-11-17 Browse:】【Font: Big Mid Small】【Print】【Close
1000-1500mm Outside Micrometer with Dial Indicator
The Micrometers are equipped with dial indicator for mass production and inspection. It is a kind of comparison inspection.

Features:
Slide anvil with a dial indicator for wide measuring range
High measuring accuracy
Tubular Frame reduces the weight.
With heat insulation grip.
Packed with strong wooden box(only for transportation)

Specification:
Range: 1000-1500mm outside micrometer
Resolution: 0.01mm
Dial indicator Range: 0-5mm
Dial Indicator resolution: 0.01mm
Thread Pitch: 0.1mm
Micrometer Head: 50mm
Max measuring force: 10N.
Part No.
Range
Resolution
Accuracy
DM-201210
1000-1500mm
0.01mm
0.028mm
