Extension Anvil and Spindle External Micrometer
Zoom Browse
Product Name: Extension Anvil and Spindle External Micrometer
Product Numbers: DM-201301
Product Specifications: Rangel:0-200mm
Product Unit: Micrometer Head: 0-25mm
Product Remark: Lengthened anvil and spindle
Product Class:Measuring Tools > Micrometer > Outside Micrometers
Product Details
【DateTime:2013-11-18 Browse:】【Font: Big Mid Small】【Print】【Close

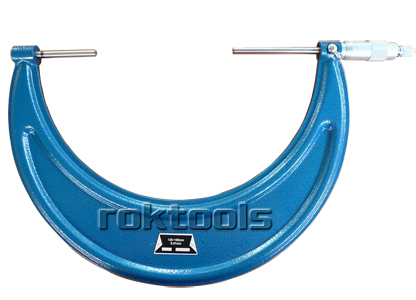

Extension Anvil and Spindle External Micrometer
Micrometers are devices based upon a known linear distance that will be traveled through one rotation on a screw thread. In order to maintain accuracy, a micrometer must be regularly calibrated

Features:
Metal Sheet frame (0-200mm)
With extended anvil and spindle (lengthened 50mm respectively)
Micrometer Head: 0-25mm
Painted frame.
Carbid measuring contact,
High ground spindle and anvil.
Packed with wooden box or hard plastic box.

Specification:
Part No.
Range
Resolution
DM-201301
0-25mm
0.01mm
DM-201302
25-50mm
0.01mm
DM-201303
50-75mm
0.01mm
DM-201304
75-100mm
0.01mm
DM-201305
100-125mm
0.01mm
DM-201306
125-150mm
0.01mm
DM-201307
150-175mm
0.01mm
DM-201308
175-200mm
0.01mm
