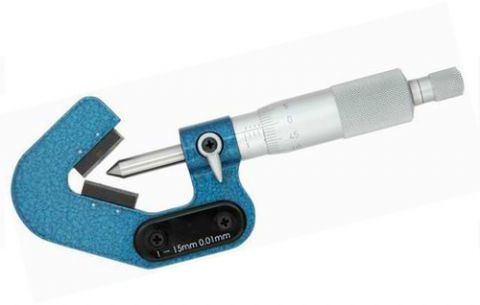

Mechanical V-Anvil Micrometers Features:
1. Measures the outside, diameter of cutting tools such as reamers, taps, and end mills.
2. Ratchet stop design with spindle lock.
3. Standards included.
Metric
3Flutes：
|
Order NO
|
Range
|
Resolution
|
|
DM-123331
|
1-15mm
|
0.001mm
|
|
|
5-20mm
|
0.001mm
|
|
|
20-35mm
|
0.001mm
|
|
|
35-50mm
|
0.001mm
|
|
|
50-65mm
|
0.001mm
|
|
|
65-80mm
|
0.001mm
|
|
|
80-95mm
|
0.001mm
|
|
|
2.3-25mm
|
0.001mm
|
|
|
25-50mm
|
0.001mm
|
5Flutes:
|
Order NO
|
Range
|
Resolution
|
|
DM-123351
|
5-25mm
|
0.001mm
|
|
|
25-45mm
|
0.001mm
|
|
|
45-65mm
|
0.001mm
|
|
|
35-50mm
|
0.001mm
|
|
|
50-65mm
|
0.001mm
|
7Flutes:
|
Order NO
|
Range
|
Resolution
|
|
DM-123371
|
5-25mm
|
0.001mm
|
|
|
25-45mm
|
0.001mm
|
|
|
45-65mm
|
0.001mm
|
|
|
65-85mm
|
0.001mm
|
INCH
3Flutes：
|
Order NO
|
Range
|
Resolution
|
|
DM-123331Y
|
0.04-0.6"
|
0.00005"
|
|
|
0.2-0.8"
|
|
|
|
0.8-1.4"
|
|
|
|
1.4-2.0"
|
|
|
|
2.0-2.6"
|
|
|
|
2.6-3.2"
|
|
|
|
3.2-3.8"
|
|
|
|
0.09-1"
|
|
|
|
1-2"
|
0.00005"
|
5Flutes:
|
Order NO
|
Range
|
Resolution
|
|
DM-123351Y
|
0.2-1.0"
|
|
|
|
1.0-1.8"
|
|
|
|
1.8-2.6"
|
|
|
|
2.6-3.4"
|
|
|
|
3.4-4.2"
|
0.00005"
|
7Flutes:
|
Order NO
|
Range
|
Resolution
|
|
DM-123371Y
|
0.2-1.0"
|
|
|
|
1.0-1.8"
|
|
|
|
1.8-2.6"
|
|
|
|
2.6-3.4"
|
0.00005"
|
