Digital Electronic Flange Micrometer_Tooth Thicknes Micrometer
Zoom Browse
Product Name: Digital Electronic Flange Micrometer_Tooth Thicknes Micrometer
Product Numbers: DM-140801
Product Specifications: 0-200mm/0-8inch
Product Unit: Disc Micrometers flange micrometer
Product Remark: Accuracy:0.004-0.007mm
Product Class:Measuring Tools > Micrometer > Tooth Thickness Micrometer
Product Details
【DateTime:2013-09-01 Browse:】【Font: Big Mid Small】【Print】【Close

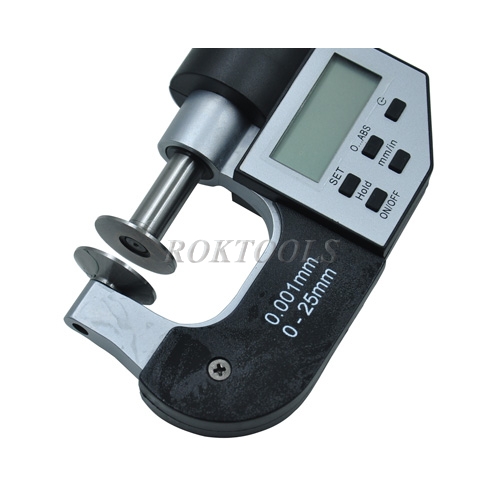

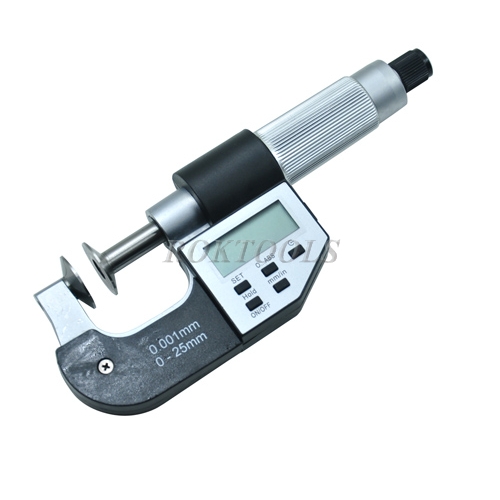

Digital Electronic Flange Micrometer_Tooth Thicknes Micrometer
This micrometer finds its application in measuring flanges and hard to reach areas, or paper thickness, film.
Spindle lock
Disk diameter: 20mm
Thickness of disc: 0.7mm-0.9mm
Range: 0-25mm---175-200mm


1.Resolution:0.001mm/0.00005"

2.Non-rotating spindle

3.Buttons:on/off, data set, mm/in, ABS/INC, data output

4.SR44 battery, with one spare battery, auto power off

Ratchet Stop and Ratchet Friction thimble



Order NO
Range
Resolution
Diameter of Disk
DM-140801
0-25mm
0.001mm
20mm/0.8"
DM-140802
25-50mm
0.001mm
20mm/0.8"
DM-140803
50-75mm
0.001mm
 20mm/0.8"
DM-140804
75-100mm
0.001mm
 20mm/0.8"
DM-140805
100-125mm
0.001mm
30mm0.8"
DM-140806
125-150mm
0.001mm
 30mm/1.2"
DM-140807
150-175mm
0.001mm
30mm/1.2"
DM-140808
175-200mm
0.001mm
30mm/1.2"


disc micrometer

Tooth Thicknes Micrometer
