200-500mm Large Range Electronci Digital Internal Micrometer_

200-500mm Large Range Electronci Digital Internal Micrometer

Product Name: 200-500mm Large Range Electronci Digital Internal Micrometer

Product Numbers: IM-321601

Product Specifications: Range: 200-500mm, 200-1000mm, 8-20

Product Unit: Meet with DIN40050/IE529

Product Remark: L maximum diamension of measured diameter

Product Class:Measuring Tools > Micrometer > Three point Internal Micrometer

Product Details

【DateTime:2014-05-15 Browse:】【Font: Big Mid Small】【Print】【Close】

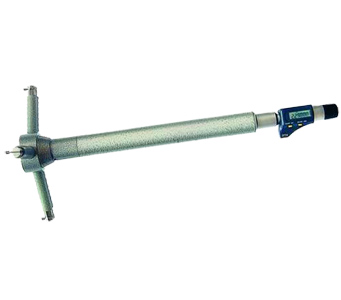

200-500mm Large Range Electronci Digital Internal Micrometer

Part No: IM-321601

Features:

Includes an extension rod for access to deep bores.

Patent structure for large range measurement.

Carbide-tipped measuring faces helps provide wear resistance.

Meet with DIN40050/IEC529 standard.

L-maximum dimension of measured diameter.

With Interchangeable measuring rods(L)
Specification:

Metric

Order No

Range

Interchangeable measuring rods(L)

Setting Ring

Extension Rods

IM-321601

200-500mm

3*50mm, 3*100mm

200mm

150mm, 500mm

IM-321602

200-1000mm

3*50mm, 3*100mm,

3*150mm 3*200mm, 150mm, 500mm

3*250mm, 3*300mm, 1000mm

3*350mm

200mm

150mm, 500mm,

1000mm

Inch

Order No	Range	Interchangeable measuring rods(L)	Setting Ring	Extension Rods
IM-321601Y	8-20	32 , 34	8	6, 20
IM-321602Y	8-40	32, 34 , 36 38, 6, 20 310, 312, 3*14	8	6", 20", 40",

For other three point micrometer, Please vist our website

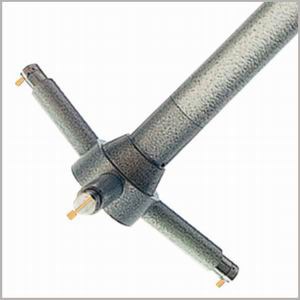

tip

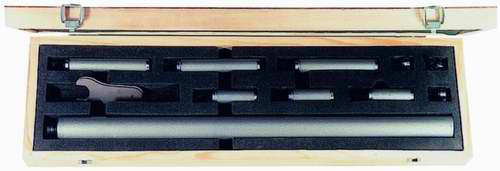

package
