Deep Throat Double Spherical Face Tube Micrometer
Zoom Browse
Product Name: Deep Throat Double Spherical Face Tube Micrometer
Product Numbers: DM-01B03
Product Specifications: Range: 0-25mm
Product Unit: Resolution: 0.01mm
Product Remark: Throat Depth: 0.01mm
Product Class:Measuring Tools > Micrometer > Tube Micrometers
Product Details
【DateTime:2016-02-29 Browse:】【Font: Big Mid Small】【Print】【Close

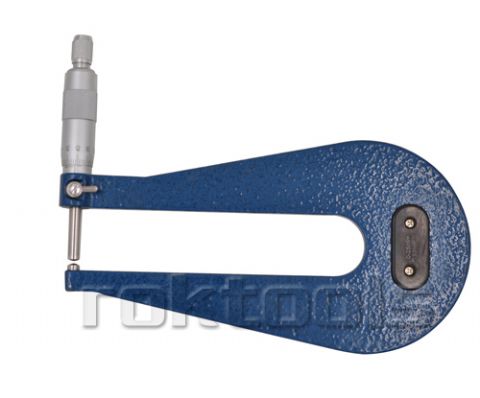

Deep Throat Double Spherical Face Tube Micrometer

         The micrometer is designed to measure the wall thickness of tube or something with arc surface. With deep throat. it can measure the centre of the item.  As professional micrometer and other gauge supply, Rok can OEM for different tube micrometer, with different depth of throat of this micrometer.

Specification:

    Range: 0-25mm, 25-50mm
    Resolution: 0.01mm
    Throat: 150mm ( can OEM 150, 200, or 300mm depth).
    Anvil:  Sperical surface
    Spindle: Sperical surface
