Feeler Gauge
Zoom Browse
Product Name: Feeler Gauge
Product Numbers: FEGA-11011
Product Specifications: 0.05-1.00mm
Product Unit: 0.02-1.00mm
Product Class:Measuring Tools > Pitch Feeler Gauge > Feeler Gauge
Product Details
【DateTime:2017-11-27 Browse:】【Font: Big Mid Small】【Print】【Close

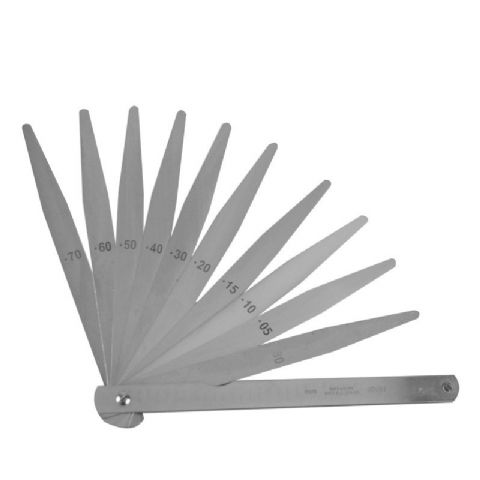

Taper Feeler Gauge Thickness Gauge

Features:

-One stop full range
-Made of hardened alloy steel.
-Blade length: 100mm Short blade
-Blade: 10-17 Leaves.
Specification:
Part No  Leaves Range  Including  Length of leaves
FEGA-11011 10 0.05-0.50  0.05 0.06 0.07 0.08 0.09 0.10 0.20 0.30 040 0.50mm 100mm
FEGA-11012 14 0.05-0.50  0.05 0.06 0.07 0.08 0.09 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50mm  100mm
 FEGA-11013 14 0.05-1.00  0.05 0.06 0.07 0.08 0.09 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.75 1.00 100mm
 FEGA-11014 17 0.02-0.50  0.02 0.03 0.04  0.05 0.06 0.07 0.08 0.09 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 100mm
 FEGA-11015 17 0.02-1.00  0.02 0.03 0.04  0.05 0.06 0.07 0.08 0.09 0.10 0.15 0.20 0.25 0.30 0.40 0.50 0.75 1.00mm 100mm
