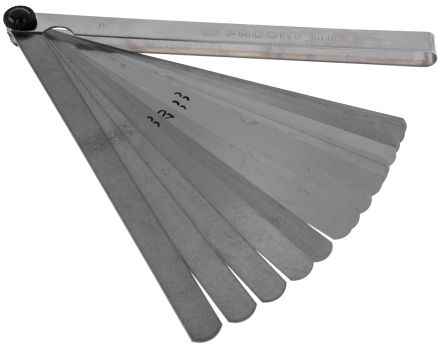

ROK Feeler Gauge Thickness Gage Sets
Zoom Browse
Product Name: ROK Feeler Gauge Thickness Gage Sets
Product Numbers: FEGA-13011
Product Class:Measuring Tools > Pitch Feeler Gauge > Feeler Gauge
Product Details
【DateTime:2017-11-27 Browse:】【Font: Big Mid Small】【Print】【Close】
Features:
-Hardened spring steel, good at elasticity
-Each thickness has been marked on the blade.
-All leaves have been tightened by screw.
-High ground surface
Specification:
Part No  Leaves Range  Including  Length of leaves
FEGA-13011 13 0.05-1.00 0.05 0.10 0.15 0.20 0.25 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00 150mm
FEGA-13012 13 0.05-1.00 0.05 0.10 0.15 0.20 0.25 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00
 200mm
 FEGA-13013 13 0.05-1.00  0.05 0.10 0.15 0.20 0.25 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00
 300mm
 FEGA-13014 20 0.05-1.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.55 0.60 0.65 0.70 0.75 0.80 0.85  0.90 0.95 1.00
 150mm
 FEGA-13015 20 0.05-1.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.55 0.60 0.65 0.70 0.75 0.80 0.85  0.90 0.95 1.00
 200mm
FEGA-13016 20 0.05-1.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.55 0.60 0.65 0.70 0.75 0.80 0.85  0.90 0.95 1.00 300mm





Note:
