Skew-T Fillet Weld Gauge Weld Acute Side
Zoom Browse
Product Name: Skew-T Fillet Weld Gauge Weld Acute Side
Product Numbers: WG-507
Product Unit: Material: Stainless Steel
Product Remark: China Skew-T Fillet Weld Inspection Gauge
Product Class:Measuring Tools > Welding Gauges > Skew-T Fillet Weld Gauge
Product Details
【DateTime:2013-09-05 Browse:】【Font: Big Mid Small】【Print】【Close
Skew-T Fillet Weld Gauge is designed for Check Angle of Vertical Member, Weld Acute Side, Weld Obtuse Side,measure fillet or groove welds in skewed members or members at 90 degrees, measuring the W dimension of a fillet weld in a skewed tee joint from the obtuse side of the member. and from the acute side of the member.

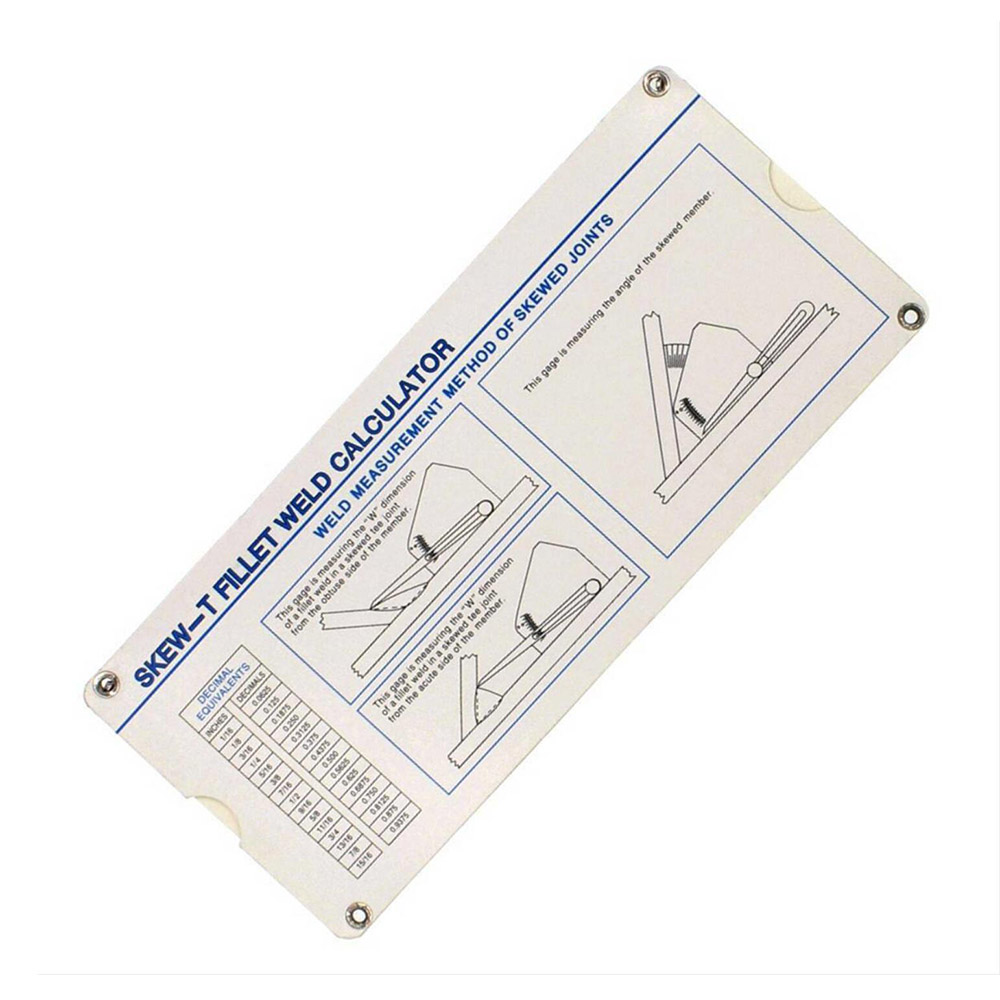

Come with Calculator,A handy compilation of mathematical relationships between leg length, throats, skew angles and inspection dimensions. A must for designers and inspectors.

Packed with plastic box
Weight: 175g
Material: Stainless Steel.
Process: , Hardened, Highly polished, laser curved.
Easy to handle and to read.


Skew-T Fillet Weld Gauge
