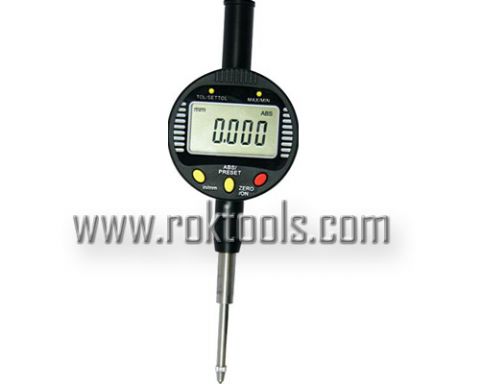

New type Digital Indicator Features:
1.manual/auto power off
2.preplace started position value,without reset before change the battery
3.counting converse
4.mm/in conversion
5.absolute and relative measurement
6.set zero at any position
7.TOL value setting
8.auto distinguish windage state
9.high-speed tracking maximum/minimum/extremum
10.run-out detector
11. with data output.
12. separated sensor and display
Technic Parameter:
display:broad screen display
reaction speed:1.5m/s
axis diameter:8mm(ISO/GB ) or 3/8(ANSI )
point gauge:with M2.5X0.45 screw thread horniness metal ball
or with#4-48UNF screw thread horniness metal ball
|
Código
|
Capacidade(mm)
|
Resolução(mm)
|
Exatidão(mm)
|
Mesuring Forças
|
|
EDI-401
|
0-12.7
|
0.01
|
0.02
|
less than 1N
|
|
EDI-401H
|
0-12.7
|
0.005
|
0.015
|
less than 1N
|
|
EDI-402
|
0-25.4
|
0.01
|
0.02
|
less than 1N
|
|
EDI-402H
|
0-25.4
|
0.005
|
0.015
|
less than 1N
|
|
EDI-403
|
0-50.8
|
0.01
|
0.02
|
less than 1N
|
|
EDI-403H
|
0-50.8
|
0.005
|
0.015
|
less than 1N
|
