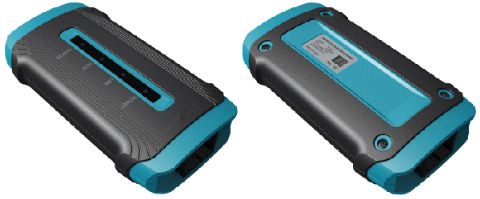

VCX is a high capability function interface to be compatible with multiple automotive diagnostic protocols. VCX is designed according to the automotive industrial standard of Europe and USA, so it can be compatible with more diagnostic applications of OEM and the third party.
Features：
- Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles protocols.
- Use standard 802.11b/g WIFI wireless，connect easy to network, or connect to Laptop to realize wireless diagnosis.
- Diagnostic software accord with international standard, collocate communication port flexibly, less connectors support almost all vehicles socket.
- Self-determination design for adapters and cables.
- Compliant with 12V and 24V communication, Support heavy duty and diesel vehicles.
- Hardware accord with CE and FCC standard.
- Firmware Updatable ，Keep improving
Hardware Specification：
|
Item
|
Instruction
|
|
Processor
|
Special Dual Cell Processor for automotive
|
|
Flash
|
512KB
|
|
Wired socket
|
USB2.0/USB1.1 Compatible
|
|
Diagnostic Socket
|
24PIN Adapter(Self-determination design)
|
|
Wireless Socket
|
802.11b/g Wireless WIFI
|
|
Indicator Light
|
4 LED indicator lights，Indicate Power and operation state
|
|
Power
|
DC 9V-28V Vehicle’s power input
|
|
Consumption
|
3W
|
|
Size
|
LxWxH=156x86x35（mm）
|
|
Working Temperature
|
-20～+70 °C
|
|
Storage Temperature
|
-40～+85 °C
|
Software Specification：
- Provide driver program compliance with the international standard of SAE-J2534 / SAE-J2534-1
- VCX is a standard reprogramming tool of Pass through, ECU reprogramming online can be realized.
Compatible Software：
- Toyota TIS Techstream
- Honda HDS
- VOLVO VIDA
- Mercedes Benz STAR DAS
