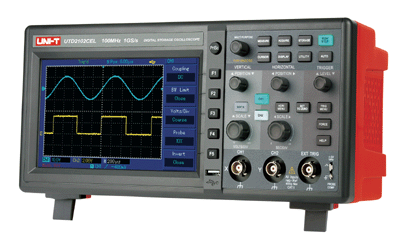

Osciloscópio Digital China UTD2102CEL
SPECIFICATIONS
| Feature |
UTD2102CEL |
| Bandwidth |
100 MHz |
| Rise Time |
≤3.5 ns |
| Real-time Sampling Rate |
1GS/s |
| Equivalent Sampling Range |
50GS/s |
| Vertical Sensitivity |
1mV ~ 20V/div |
| Record Length (Max) |
2 x 600k |
| Scan Time Base |
2ns ~ 50s/div |
| Trigger Type |
Edge, Pulse, Alternate |
| Automatic Waveform Measurements |
28 |
| Frequency Counter |
6 digits frequency counter |
| Ports |
USB OTG |
| Mathematics |
Add, Subtract, Multiply, Divide, FFT |
| Other Features |
Special Print Screen Feature |
GENERAL CHARACTERISTICS
| Power |
100 - 240VACRMS, 45Hz -440Hz, CAT II |
| LCD Size |
Diagonal 178mm (7 inches) |
| Product Color |
Red and Grey |
| Product Net Weight |
2.2kg |
| Product Size |
306mm x 147mm x 122mm |
| Accessories |
Probe x 2 (1x, 10x switchable),
Power Cord and English Manual
UT-D05 USB Cable, PC Communication Software |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
2 pcs |
| Standard Carton Measurement |
445 x 410 x 270mm (0.055 CBM Per Export Carton) |
| Standard Carton Gross Weight |
Around 8.5kg |
