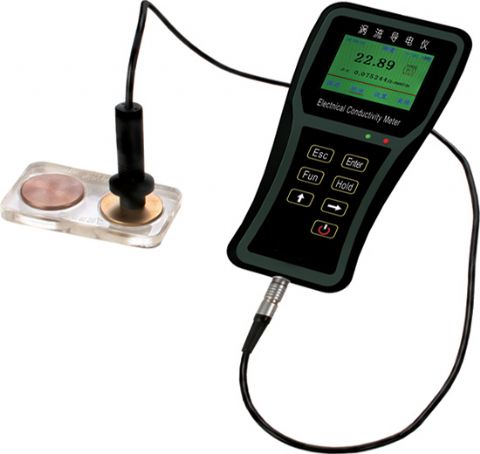

China Portátil Medidor de Correntes Parasitas
Zoom Navegar
Produtos Nome: China Portátil Medidor de Correntes Parasitas
Produtos Números: EEDI-102
Produtos Especificaciones: 60 KHz
Produtos Clase:Instrumentos de Medição > Instrumentos NDT > Ensaio por Correntes Parasitas
Produtos Detalles
【Tempo:2011-10-25 Navegar:】【Fonte: Grande Médio Pequeno】【Imprimir】【Fechar
Eddy current electrical conductivity meters, designed for quick & convenient measurement of material property, such as material separate,quality control,material state check and so on.The products use the electromagnetism testing principle, can testing objects focus on non-ferromagnetic materials. products use 60 KHz (aviation industry standard) to inspirit, the testing data can be read in two kinds of unit (%IACS and MS/m).The products can test electrical conductivity and resistivity at the same time, and they include the intelligent temperature and lift-off compensations, thus can guarantee the testing accuracy of each measurement.The big typeface and the back light illumination designs are advantageous for users to take the testing data even in low light condition.
 he products use the high property battery to make sure it keeps more running time, and because of their mini-size, you could easy to carry and to grasp hold.
 The design of the products are more advantages, such as users can replace the probe in the outdoor, don’t need to return the company to adjust the probe into matching the meter.
 two kinds of operate languages (English &Chinese) satisfy different national demand. It can store 1000 measurement data, moreover, users can use USB connect the meter to a PC to create testing report.

   Application:

 Absolute measurement of electrical conductivity of nearly all non-ferrous metals(Ti – Ag)

 In the aerospace and automotive industry,monitor the process of heat treatment, the strength and hardness of aluminum alloy

 Test the conductivity when the aluminum have not been oxidized

 Measurement the purity of non-ferrous metals

 Test the resistivity of conductive materials

Analyze thermal properties of materials



NAME

CONTENT

NOTE

Measurement technology

Eddy current



Operating frequency

60KHz



Display screen

240X320 pixels TFT-LCD

4 kinds of background color

L*B*H

180*80*35 mm



Instrument case

Anti-intense impact,water-proofing

Match the fixed belt the leather protective covering

Weight

245g

Contain battery

Power supply

High capacity, high performance lithium polymer battery

Not back light illuminate may keep on working about 100 hours.

Measuring range

1%IACS—105%IACS(0.58 MS/m -61MS/m)



Distinguishing rate

0.01% IACS



Probe compensated

0.05mm



Measuring accuracy

0 to 5023%IACS  ±0.25%IACS

100%IACS  ±0.5%IACS



Temperature compensation

0~50

Automatic compensation function

Normal work environment

Relative humidity

0~95%



Operating temperature

0~50



Language

Chinese, English



PC communication

USB



Fitting

Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter

Conductivity sample installs in the instrument, to verify and guarantee temperature compensation

Probe  Diameter

 12.7mm

(Applicable to minimum measuring area diameter at 60KHz is13mm.)



Reading storage

Preserve 1000 survey data
