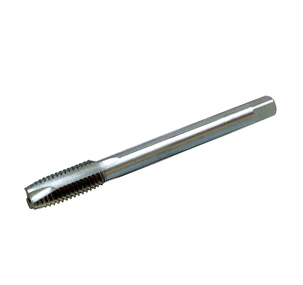

DIN 374 MF Machine Taps With Spiral Point
Zoom Browse
Product Name: DIN 374 MF Machine Taps With Spiral Point
Product Numbers: TAPS-12001
Product Specifications: Size: M3*0.5--- M52*1.5
Product Unit: Over Length: 56-190
Product Remark: DIN 374
Product Class:Machinery and Engineering Tools > Cutting Tools For Machine > Taps DIN
Product Details
【DateTime:2015-06-27 Browse:】【Font: Big Mid Small】【Print】【Close】
DIN 374 MF Machine Taps With Spiral Point

Specification
Order No
Size (mm)
Over length (mm)
Flute Length (mm)
TAPS-12001
M3*0.35
56
10
TAPS-12002
M3.5*0.35
56
10
TAPS-12003
M4*0.35
63
10
TAPS-12004
M4*0.5
63
10
TAPS-12005
M5*0.5
70
12
TAPS-12006
M6*0.5
80
14
TAPS-12007
M6*0.75
80
14
TAPS-12008
M7*0.75
80
14
TAPS-12009
M8*0.5
80
19
TAPS-12010
M8*0.75
80
19
TAPS-12011
M8*1
90
22
TAPS-12012
M9*1
90
22
TAPS-12013
M10*0.5
90
20
TAPS-12014
M10*0.75
90
20
TAPS-12015
M10*1
90
20
TAPS-12016
M10*1.25
100
24
TAPS-12017
M11*1
90
20
TAPS-12018
M11*1.5
90
20
TAPS-12019
M12*0.75
100
22
TAPS-12020
M12*1
100
22
TAPS-12021
M12*1.25
100
22
TAPS-12022
M12*1.5
100
22
TAPS-12023
M13*1
100
22
TAPS-12024
M13*1.5
100
22
TAPS-12025
M14*0.75
100
22
TAPS-12026
M14*1
100
22
TAPS-12027
M14*1.25
100
 22
TAPS-12028
M14*1.5
100
22
TAPS-12029
M16*1
100
22
TAPS-12030
M16*1.25
100
22
TAPS-12031
M16*1.5
100
22
TAPS-12032
M18*1
110
25
TAPS-12033
M18*1.5
110
25
TAPS-12034
M18*2
125
34
TAPS-12035
M20*1
125
25
TAPS-12036
M20*1.5
125
25
TAPS-12037
M20*2
140
34
TAPS-12038
M22*1
125
25
TAPS-12039
M22*1.5
125
25
TAPS-12040
M22*2
140
34
TAPS-12041
M24*1
140
28
TAPS-12042
M24*1.5
140
28
TAPS-12043
M24*2
140
28
TAPS-12044
M26*1.5
140
28
TAPS-12045
M27*2
140
28
TAPS-12046
M28*1.5
140
28
TAPS-12047
M30*1.5
150
28
TAPS-12048
M30*2
150
28
TAPS-12049
M32*1.5
150
28
TAPS-12050
M35*1.5
170
30
TAPS-12051
M36*1.5
170
30
TAPS-12052
M38*1.5
170
30
TAPS-12053
M40*1.5
170
30
TAPS-12054
M42*1.5
170
30
TAPS-12055
M45*1.5
180
32
TAPS-12056
M48*1.5
190
32
TAPS-12057
M50*1.5
190
32
TAPS-12058
M52*1.5
190
32
